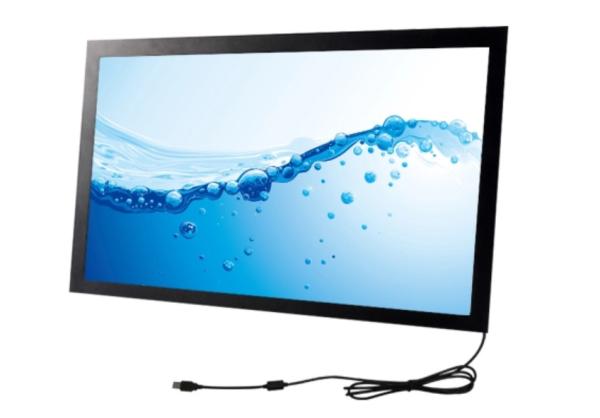

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine
DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine
Specifications
Brand Name :
GreenTouch
Model Number :
GT-IR-TＢ55.0-1
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, MoneyGram
Supply Ability :
10,000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
carton
Screen Ratio :
16:9
Communication :
USB 2.0 Full Speed
Average Current :
≤200mA
Touch Screen Size :
55"
Touch Refresh Rate :
≥ 110Hz
Working Voltage :
DC 5.0V±5%
Power Cunsumption :
≤ 1.0W
Touch points :
Real 16points
Description

Standard Black 55 Inch Infrared Touch Frame CE , FCC , ROHS Certification

About GreenTouch:

Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of product.Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch machine. Our company has our own brand—GreenTouch and provides customers with touch products including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen,various touch screen monitors and touch all in one PC TV. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation.Our products have been certified to CE, FCC, ETL, ROHS andUL. The objective of GreenTouch is to become the most reliable supplier oftouch screen, high value-added and special touch products and touch solutions in the world.

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising MachineDC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine

Technical Principle:

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising MachineDC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine

Customized Splicing

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine

Application:

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine
DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine

Product Specifications:

Touch Screen Size 55"
Touch Activation Force No pressure required
Luminous Transmission >92%(100% with no glass)
Reported Touch Resolution Without Driver: 32768*32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Minimum Recognition Point Size 4mm*4mm
Touch Object Size Recognition Yes
Interface Socket type USB cable 1.5 m, socket type 5P

Electrical Specification

Touch Refresh Rate ≥ 110Hz
Communication USB 2.0 Full Speed
PowerSupply Mode USB*1
Working Voltage DC 5.0V±5%
Average Current ≤200mA
Power Cunsumption ≤ 1.0W
LED Lifetime 60000hours
Fault-tolerant Able to work if less than 10% non-consecutive sensors are damaged

Environmental Specification

Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃～50℃
Storage temperature:-20℃～60℃
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge
Anti-light Interference Excellent

Software Specification

Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux

Packing & Shipping & Payment:

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising MachineDC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine

FAQ:

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine

DC 55 Inch Infrared Touch Frame Panel Frame Kit For Advertising Machine
