Specifications
Brand Name :
GreenTouch
Model Number :
GT-5W-21.5A-1
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, MoneyGram
Supply Ability :
10,000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
carton
Interface Type :
USB or RS232
Resolution :
4096x4096
Touch Life :
35,000,000
Response time :
Less than 10ms
Screen Ratio :
16:9
Position accuracy :
2~5mm
Description

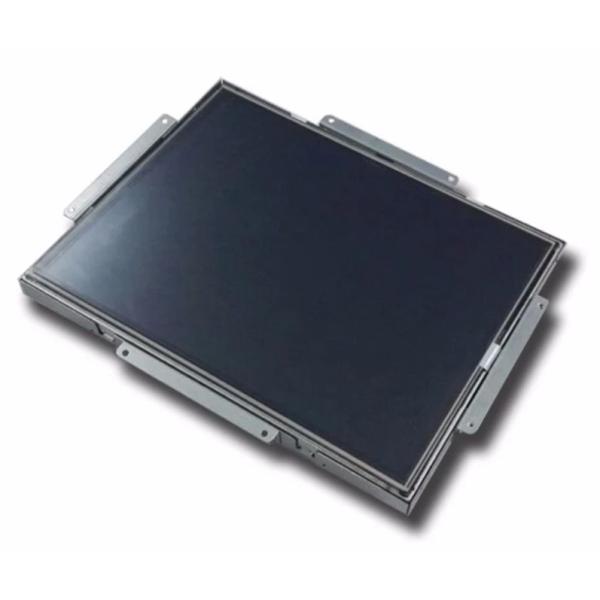

21.5 Inch 5 Wire Resistive Touch Screen Finger Gloved Hand And Touch Pen Activation

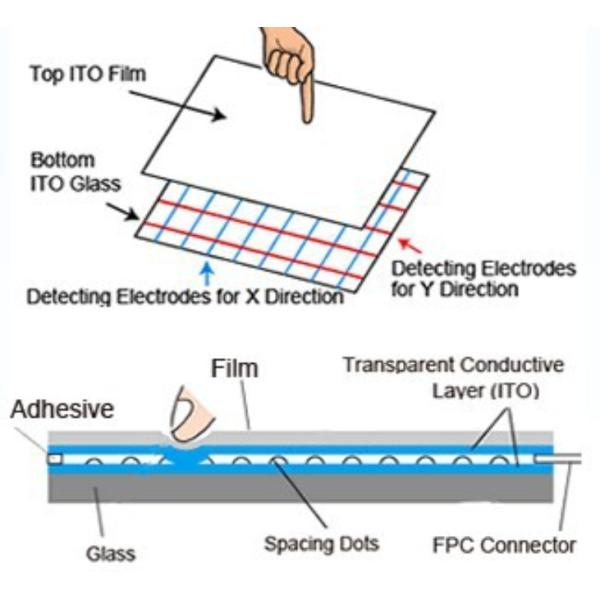

Technical Principle:

5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.

When the top ITO film is pressed and makes contact with the bottom glass, the contacted area will be detected via electrical conduction. The notable characteristic of 5wire resistive is that only the bottom glass has detecting function. Even if the top ITO film is damaged, the detecting function will not beaffected(except for the damaged area).

Water Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATM

Model Information:

Product model Szie 5wire TP Product size
Out sizeTP(mm) VA size(mm) AA size(mm) Thickness PFC location
GT-5W-21.5A-1 21.5" 490x285 480x270 476x266 2.3mm Long side

Produt Specification
Water Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATMWater Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATMWater Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATMWater Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATM

Applications:

  • Light industrial
  • Home appliances
  • Portable sport devices
  • Access control terminals
  • Portable medical devices
  • Personal and office computer


Water Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATM

PACKING AND SHIPPING:

Water Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATMWater Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATM

CERTIFICATES:

Water Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATM

ABOUT US:

Water Proof And Dust Proof Resistive Touchscreen Customized 21.5 Inch For ATM
