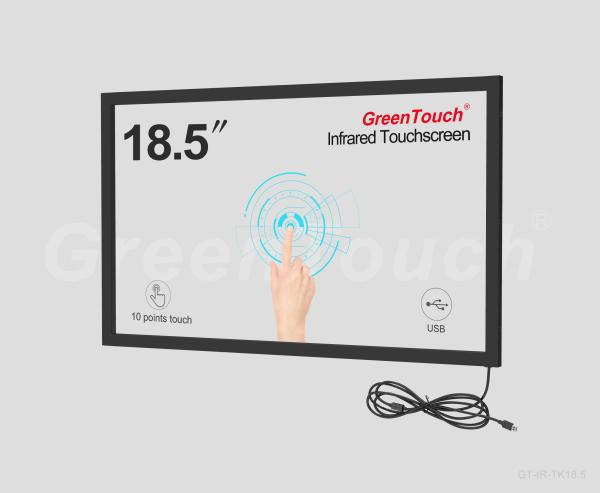

Dustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 Resolution
Dustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 Resolution
Dustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 Resolution
Dustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 Resolution
Specifications
Brand Name :
GreenTouch
Model Number :
GT-IR-TK18.5-1
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, MoneyGram
Supply Ability :
10,000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
carton
Screen Ratio :
16:9
Minimum touch object :
5mm
Scan frequency :
200Hz
Frame material :
Aluminum alloy
Exterior color :
Black
Interpolation resolution :
4096*4096
Response speed :
≤15ms
Description

Standard Black 18.5Inch Infrared Touch Frame CE , FCC , ROHS Certification

Feature:

  • Water-proof ,anit-UV,anti-vandal
  • Stable and no drift
  • No light spots
  • High durability and quick response to touch of any opaque object
  • Wide range of temperature
  • Transparency and high resolution.

Dustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 ResolutionDustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 ResolutionDustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 ResolutionDustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 ResolutionDustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 ResolutionDustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 ResolutionDustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 Resolution

Product Model number
Model number Ratio Outline(mm) Active Area(mm) Thickness(mm) Touch point
GT-IR-TK18.5-1 16:9 454*275 412*233 8.0 10/16/20

Product Specification:

Frame material Aluminum alloy
Exterior color black
Glass Built-in 3mm tempered glass
Interpolation resolution 4096*4096
Response speed ≤15ms
Touch accuracy More than 90% of the touch area is ±2mm
Input Fingers, touch pens, etc.
Output Type Coordinate / output
Theoretical clicks Unlimited times
Minimum touch object 5mm
Interface Type USB

Electronic characteristics

Scanning frequency 200HZ
USB A-USB
USB-D+USB-D-
Power supply mode USB to take power
Power supply voltage DC+5V±5%
Working current <200mA

Environmental characteristics

Project Specification
Temperature range Operating temperature:-10 °C ~ 50 °C
Storage temperature:-20 °C ~ 60 °C
Relative humidity Operating humidity:10%~85% RH
Operating humidity:10%~90% RH
Light resistance Have certain light resistance

Software features

Project Specification
Touch/type Single touch/2 point touch
Touch supported operating system Windows7//8/10/Windows XP/Vista/Linux/Android

About GreenTouch:

Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of product.Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch machine. Our company has our own brand—GreenTouch and provides customers with touch products including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen,various touch screen monitors and touch all in one PC TV. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation.Our products have been certified to CE, FCC, ETL, ROHS andUL. The objective of GreenTouch is to become the most reliable supplier oftouch screen, high value-added and special touch products and touch solutions in the world.

Dustproof 18.5 Inch Multi Infrared Touch Screen Frame 4096x4096 Resolution
