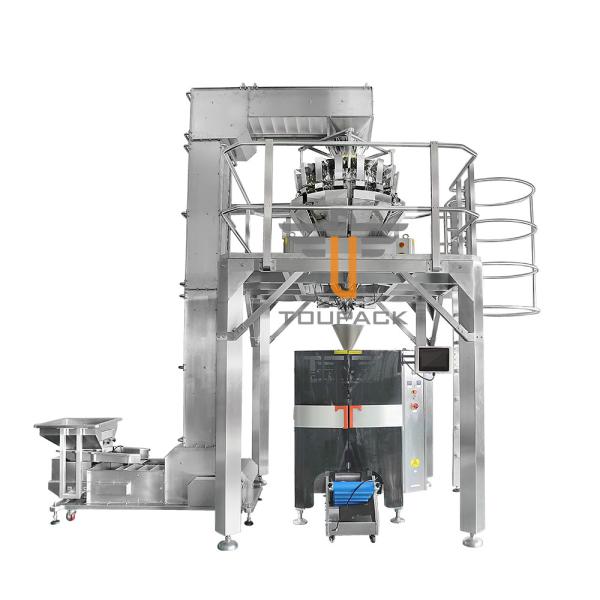

High Sensitive ISO Certificate 60BPM 10 Head Multihead Weigher For Snack
High Sensitive ISO Certificate 60BPM 10 Head Multihead Weigher For Snack
Specifications
Brand Name :
TOUPACK
Model Number :
SUS 304 Screw Conveyor
Certification :
CE/ISO
Place of Origin :
Guangdong zhongshan China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets/month
Delivery Time :
15-30 days after payment
Packaging Details :
wooden case
product name :
All In One Packing Machine
power supply :
220/110V
control system :
MCU/PLC
Feature :
Snack food
Body frame :
SUS304
Max film width :
420mm
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Description

220 / 110V stainless steel 10 Head Weigher Of Bread 304 Filling Machine Snack food


Application:

1. The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor driven, twin belt film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within +I- 1º C.
6. Selected electrical and pneumatic components from reliable international manufacturer.
7. With CE Certificate comply with CE standard


Optional Parts:


1. Date code printer
2. Gusset pouch forming device
3. Hole puncher


Optional Measuring Filler:


1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )
2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )
2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )


Specifications:

Model 520 VFFS 620 VFFS 720 VFFS
Packing Speed 10-60 bpm 10-50 bpm 10-50 bpm
Bag Size 50-350(L)*50-250(W)mm 20-400(L)*100-300(W)mm 20-450(L)*140-350(W)mm
Bag Type pillow bag, gusset bag, hole punching bag pillow bag, gusset bag, hole punching bag pillow bag, gusset bag, hole punching bag
Film Width 120-520mm 620mm 720mm
Film Thickness 0.04-0.09mm 0.04-0.09mm 0.06-0.12mm
Film Material BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE
Pulling Belt Type synchronous belt film pulling synchronous servo motor belt film pulling synchronous servo motor belt film pulling
Air Consumption 0.8Mps 0.4m3/min 0.8Mps 0.6m3/min 200L/min 0.7×105Pa
Power Supply single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW single phase 220V 50HZ/60HZ, 4.0KW single phase 220V 50/60HZ, 4.5KW
Machine Dimension 1,560(L)*1,160(W)*1,530(H)mm 1,250(L)*1,600(W)*1,700(H)mm 1,360(L)*1,630(W)*1,900(H)mm
Machine Weight 480kg 800kg 900kg
