Circular Mult-Weigher Sorting Machine For Frozen Chicken Wings
This fruit sorting machine is mainly used for apple, pear, dragon fruit, orange, peach, kiwi fruit and guava, etc round shapes of fruit and vegetable sorting and grading. This machine is to sort the fruit by fruit weight.
1. Reasonable structure design, high sorting speed, low broken rate, small weighting error and high degree of accuracy. The weighting sorting performance has reached the international standard.
2. This sorting machine can be moveable. It can not only work in the fruit garden, but also in the town factory. Thus it can reduce the fruit broken caused by fruit carrying
Advantages and applications:
1. This electronic fruit grader is efficient and precise.
2. It's widely used for grading apples, peach, persimmons,onions,lemons,mangos,pomelo,jujube,and other round fruits.
3. It is controlled by PLC, and is highly intelligent. Weighing, logic calculation, counting are integrated.
4. The operation and maintenance of the machine is easy and laborsaving. And, the efficiency of it is about 1.5 times of that of the traditional machine.
The technical specification of this machine as follow:
A. Separation grade: 4-12
B. Max weight to be sorted: 1000g
C. Min weight to be sorted: 50g
D. Precision: +3g
E. Throughput:40,000pcs/hour
F. Total power: 3KW
G. Power supply: AC110V/220V/380V, 50HZ
| Model | TY-CW-YP6 |
| Power Supply | AC220V±10% 50HZ(60HZ) |
| Rated Power | 0.6KW |
| Checking Range | ≤1000g |
| Accuracy | ±0.3g~±3g |
| Minimum Scale | 0.1g |
| Optimal Throughput | 300 pcs/min |
| Suitable Product Dimension | ≤120mm L*80mm W |
| Magazine size | 173mm*91mm |
| Rejector | Drop |
| Control Module | High Speed A/D Sampling Module |
| Product Preset | 99 |
| Conveyor Direction | Rotary |
| Operating Requirement | Temperature: 0℃~40℃,Humidity:30%~95% |
| Machine Body Construction | SUS304 Full Stainless Steel |

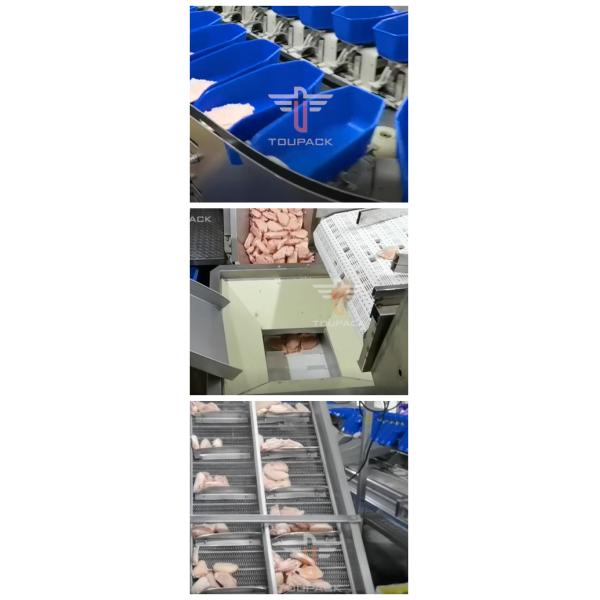

Details:
