57710-25010 Hyundai Accent Rack And Pinion , 57710-25010 1PCS dodge steering rack
57710-25010 Hyundai Accent Rack And Pinion , 57710-25010 1PCS dodge steering rack
57710-25010 Hyundai Accent Rack And Pinion , 57710-25010 1PCS dodge steering rack
57710-25010 Hyundai Accent Rack And Pinion , 57710-25010 1PCS dodge steering rack
57710-25010 Hyundai Accent Rack And Pinion , 57710-25010 1PCS dodge steering rack
57710-25010 Hyundai Accent Rack And Pinion , 57710-25010 1PCS dodge steering rack
Specifications
Brand Name :
NEWAIR
Model Number :
57710-25010
Certification :
ST16949
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
1-3work days
Packaging Details :
Neutral Packing/Brand Packing/Customized
Name :
Power Steering Rack
Material :
Aluminum
Power Source :
Hydraulic
OE.NO :
57710-25010
Model :
FOR Hyundai Accent
Warranty :
12months
Description

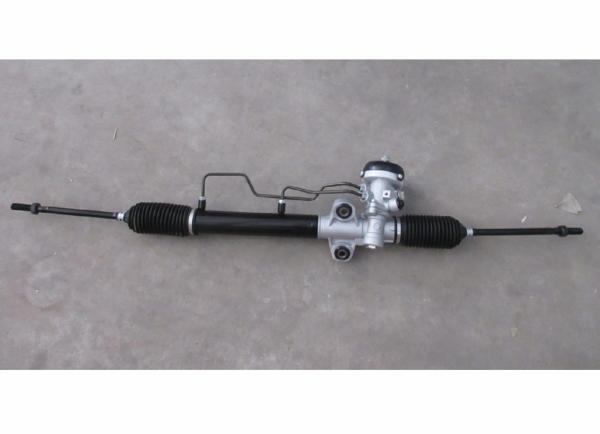

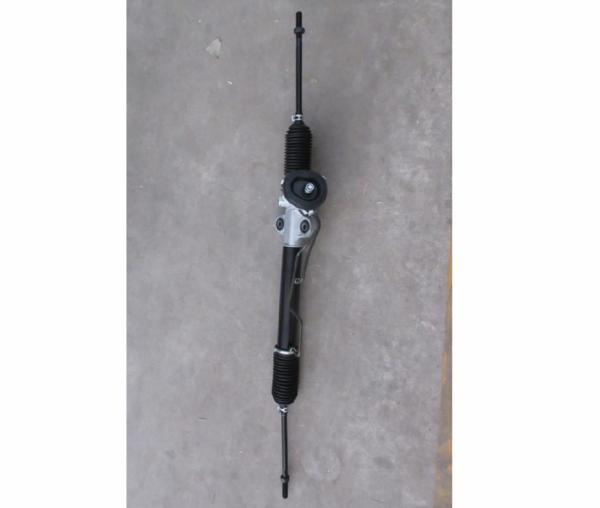

Left Hand Drive Steering Rack And Pinion Assy For Hyundai Accent H100 2000-2006 1.5c Dodge Vern 57710-25010

BRAND NEWAIR
WARRANTY 12MONTHS
MOQ 1PCS
SIZE Oem standard

Some Information About Steering Rack:

1. The mechanical hydraulic power steering system is generally composed of hydraulic pump, oil pipe, pressure and flow control valve body, V-shaped transmission belt, oil storage tank and other components.
2. This system must work regardless of whether the vehicle is steering or not, and when the vehicle speed is low in large steering, the hydraulic pump needs to output more power to obtain a greater boost. Therefore, resources are also wasted to a certain extent. It can be recalled: driving such a car, especially when turning at low speed, feels that the direction is heavier and the engine is more laborious. Also, due to the high pressure of the hydraulic pump, it is easier to damage the booster system.
In addition, the mechanical hydraulic power steering system is composed of hydraulic pumps, pipelines and cylinders. In order to maintain pressure, the system must be in working condition regardless of whether steering assistance is required, and the energy consumption is high, which is also one of the reasons for the consumption of resources.
Generally, economical cars use mechanical hydraulic power assist systems.

FAQ:

teering gear

1, Steering gear oil leakage

1) Mainly due to oil leakage from the upper cover (oil leakage at the small shaft connected to the ten bytes and at the two ends of the steering gear.

  • Troubleshooting: Whether the high-pressure oil pipe joint is tightened and whether the joint seal ring is aging and damaged, so as to avoid misjudgment due to oil leakage at the high oil pipe interface.

2, Excessive free travel and noise

Please check the following troubleshooting

Whether the connection between A steering wheel and steering column is loose.

Whether the connection between B ten bytes and steering column, ten bytes and direction machine is loose.

Whether the tie rod (inner ball head) of the C direction machine is loose, and whether the outer ball head is corroded.

The abnormal sound when turning is generally a mechanical part. During the inspection, you can turn left and right to observe the sound of the part for dis-assembly and inspection.

3, The steering wheel has a heavy fault

If you encounter a heavy descent in the direction, especially in both directions, it is heavy. You should find the reason from two aspects:

On the one hand, find the reason for turning to the mechanical part. If there is no problem with the mechanical part, then find the reason for the steering assistance

4, Some common causes of machinery are:

Relevant connecting parts (ten bytes, inner and outer ball heads of the tie rod, ingot beam) are loose, deformed, corroded

Dear Friends , if you want to know more information, welcome to contact with me directly.I will be very glad to receive your inquiry.
