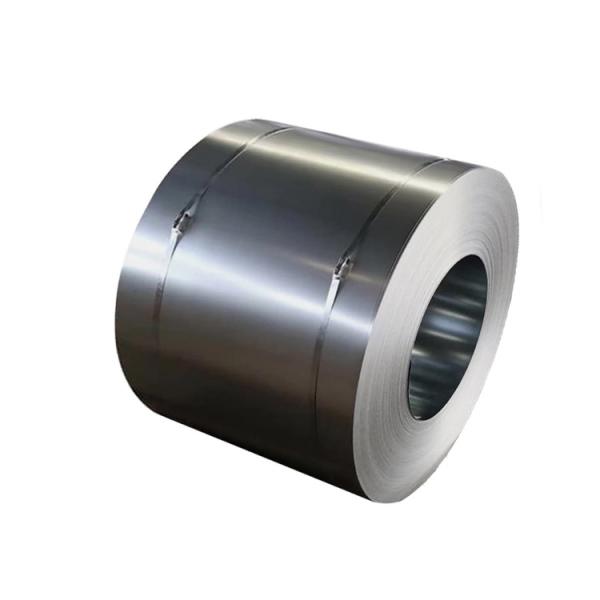

Hot DIP Galvalume Galvanized Steel Roll 55% Al-Zn Anti-Finger 0.12mm-4.0mm DX53D
Hot DIP Galvalume Galvanized Steel Roll 55% Al-Zn Anti-Finger 0.12mm-4.0mm DX53D
Hot DIP Galvalume Galvanized Steel Roll 55% Al-Zn Anti-Finger 0.12mm-4.0mm DX53D
Hot DIP Galvalume Galvanized Steel Roll 55% Al-Zn Anti-Finger 0.12mm-4.0mm DX53D
Specifications
Brand Name :
XHD
Model Number :
galvanized steel coil
Certification :
SGS,BV,ISO,CE
Place of Origin :
Jiangsu
MOQ :
1Ton
Price :
400usd-650usd/Ton
Payment Terms :
T/T, L/C, D/P, D/A
Supply Ability :
30000 Ton/Tons per Month
Delivery Time :
3-15 days
Packaging Details :
Clients' requirement and Standard export sea-worthy packing
al-zinc coating :
30-185 g/ m2, or according to customer's requests
Thickness :
0.12mm-4.0mm or custom
Steel Grade :
DX51D/SGCC, DX52D, DX53D, SGCC, etc
Zinc Coating :
30-275g/m2
Spangle :
Zero.minimum .Regular Big Spangle
Product Name :
Galvalume Galvanised Steel Coil
Description

55% Al-Zn Anti-Finger Hot DIP Galvalume Galvanized Steel Roll

Will galvanized steel rust?

Galvanized steel takes a long time to rust, but it will eventually rust. This type is carbon steel that has been galvanized or coated with a thin layer of zinc. The zinc acts as a barrier preventing oxygen and water from reaching the steel, providing advanced corrosion protection.

Thick 0.12 ~6.0 mm
Width 600-1500 mm
Zinc Coating 30~275G/M2
Coil ID 508 / 610MM
Coil Weight 3-5 Tons
Standard ASTM-A653; JIS G3302; EN10147; EN10326etc
Payment Terms T/T, LC,DP.
Regular Order 25 tons or one container, for less quantity, to contact with us for details
Hardness Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Surface Structure Regular spangle,Minimum spangle, Zero spangle, Big spangle
Surface Treatment Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass

Hot DIP Galvalume Galvanized Steel Roll 55% Al-Zn Anti-Finger 0.12mm-4.0mm DX53D

Different Surface:Small,Large,Zero.Select as per your requirement

Hot DIP Galvalume Galvanized Steel Roll 55% Al-Zn Anti-Finger 0.12mm-4.0mm DX53D

Content
Material: SG550/SG280/SG350DX51D+Z SGCC/ CS TYPE
Finish NBMinimized Spangle (M)
Surface Treatment Chemically Passivated (C)
Oil Not Oiled
Zinc Z30--275
Thickness tolerances Normal thickness tolerances 0.40 < thickness ≤ 0.60 ± 0.060
0.60 < thickness ≤ 0.80 ± 0.070
0.80 < thickness ≤ 1.00 ± 0.080
1.00 < thickness ≤ 1.20
Width tolerances 1200 < width ≤ 1500 6 ~ 0

Chemical composition

Designation Chemical composition % by mass max.
Steel grade C Si Mn P S TI
Steel name Symbols for the types of available coatings
DX51D +Z 0.18 0.5 1.2 0.12 0.045 0.3

FAQ
Q1: Are you from a factory or trade company?
A1: Henan Tiga Engineering Co.,Ltd is a factory with 15 years export experiences.
Q2: What is the payment term?
A2: Normally 30% T/T as deposit and the balance upon the copy of bill of lading. L/C is also acceptable.
Q3: What about the delivery time?
A3: Normally about 25 days after receiving the deposit.
Q4: What are the advantages of aluminum zinc steel coil compared with galvanized steel coil?
A4: Aluminum zinc steel coil has higher anti-corrosion and stable performance with longer service life.
Q5: Can you offer free samples?
A5: Yes, the samples are free, but you have to pay the delivery cost.
Q6: What's the package method?
A6: All products have the standard export seaworthy package.
