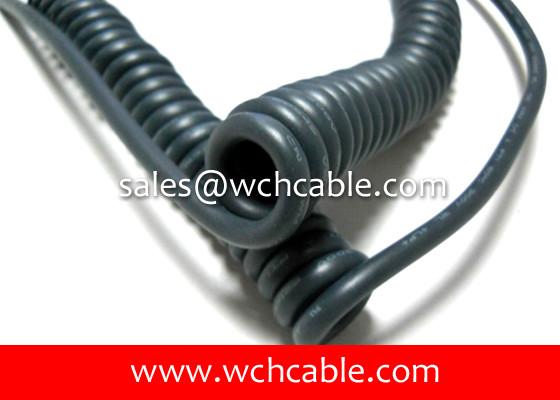

300V TPE Curly Cable UL20057 24AWG 4C OD5.1mm FT-2 Black L=240mm 105C
300V TPE Curly Cable UL20057 24AWG 4C OD5.1mm FT-2 Black L=240mm 105C
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-240405240
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
100 PCS
Price :
USD0.2312
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Rated Voltage :
300V
Jacket Material :
TPE
Product Name :
Curly Cable
UL Style :
UL20057
Curly Segment :
240mm
Colour :
Black
Description

300V TPE Curly Cable UL20057 24AWG 4C OD5.1mm FT-2 Black L=240mm 105C

Spiral Cable
Construction		 Spiral Length (unexpanded) (mm) 240
Straight Ends (mm/mm) 620/350
Extension Ratio 　 1 : 3.5
Spiral Outer Ø (mm) 17.50
Tail Angle 　 90 degree
End Treatment 　 Cut Flat
Electrical
Capability		 Working Voltage (V) 300
Temp Range (°C) -40 to +105
Test Voltage (V) 2000/3000
Nominal Voltage (V) 300
Conductor Resistance (Ω/KM 20°C) 94
Insulation Resistance (MΩ/KM 20°C) 100
Standard
& Use		 UL Marking 　 Per UL20057
CUL Standard 　 II A
Flammability 　 FT2
Raw Cable
Construction		 Conductor Size (AWG) 24
Insulation Material 　 PP (RoHS)
Insulation Diameter (mm) 1.30
Conductor Quantity 　 4 Cores
Assembly 　 Stranded in layers
Overall Diameter (mm) 5.10
Jacket Material 　 Extruded TPE (RoHS)
Surface Effect 　 Black
