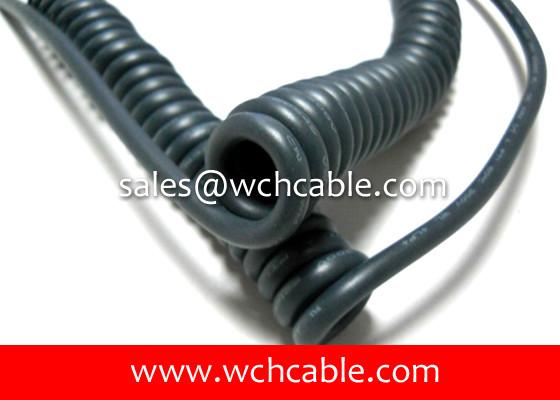

300V TPE Curly Cable UL20841 24AWG 4C OD5.5mm FT2 Black L=122.2mm
300V TPE Curly Cable UL20841 24AWG 4C OD5.5mm FT2 Black L=122.2mm
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-2404062122
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
100 PCS
Price :
USD0.1512
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Rated Voltage :
300V
Jacket Material :
TPE
Product Name :
Curly Cable
UL Style :
UL20841
Curly Segment :
122.2mm
Colour :
Black
Overall Diameter :
5.50mm
Flammability :
FT2
Description

300V TPE Curly Cable UL20841 24AWG 4C OD5.5mm FT2 Black L=122.2mm

Spiral Cable
Construction		 Spiral Length (unexpanded) (mm) 122.2
Straight Ends (mm/mm) 283/292
Extension Ratio 　 1 : 3.5
Spiral Outer Ø (mm) 19.50
Tail Angle 　 180 degree
End Treatment 　 Cut Flat
Electrical
Capability		 Working Voltage (V) 300
Temp Range (°C) -40 to +80
Test Voltage (V) 2000/3000
Nominal Voltage (V) 300
Conductor Resistance (Ω/KM 20°C) 94
Insulation Resistance (MΩ/KM 20°C) 100
Standard
& Use		 UL Marking 　 Per UL20841
CUL Standard 　 II A
Flammability 　 FT2
Raw Cable
Construction		 Conductor Size (AWG) 24
Insulation Material 　 PP (RoHS)
Insulation Diameter (mm) 1.30
Conductor Quantity 　 4 Cores
Assembly 　 Stranded in layers
Overall Diameter (mm) 5.50
Jacket Material 　 Extruded TPE (RoHS)
Surface Effect 　 Black
