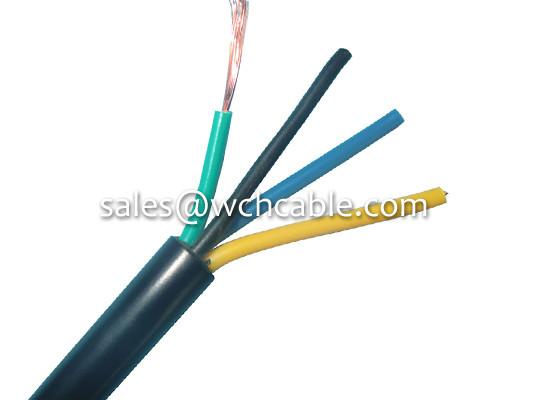

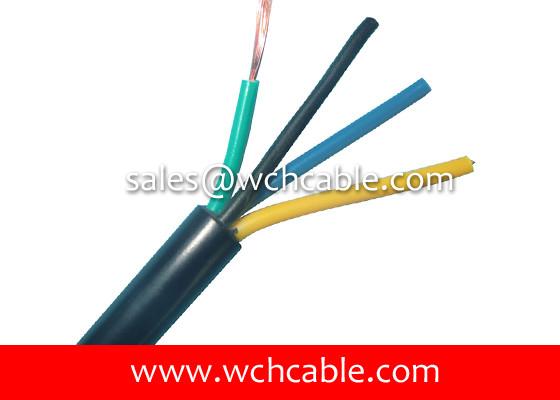

30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
30V 80C Supreme Durability Audio TPE Cable UL21394, UL21572 Fire Resistant Grade VW-1 / FT-2
Specifications
Brand Name :
WCH Cable
Model Number :
UL21394
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD0.10 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per spool / reel
Conductor :
Pure Copper Conductor
Insulation :
AWM Material
Rated Voltage :
30V
Jacket Material :
Elastomer TPE
Feature :
Supreme Durability
Application :
Audio Connection
Flammability :
VW-1, FT2
Style Number :
UL21394, UL21572
Description

Approval style number: UL21394

Rated temperature and voltage: 80 deg C, 30 Vac, Horizontal flame.

Conductor: pure copper wire conductor.

Insulation material: PVC, PP, HDPE, LDPE, SR-PVC, XL-PE, XL-PVC, TPE, FRPE.

Jacket material: Extruded TPE.

Applied standard: Appliance Wiring Material UL 758.

Application: Internal wiring of electronic equipment in Class 2 Systems only.

Origin: Dongguan, China

Equivalent approval style numbers of 30V 80C Supreme Durability Audio TPE Cable:

Approval Style Temperature Voltage Material Brand
UL 21394 80 30 Thermoplastic Elastomer / TPE WCH Cable
UL 21572 80 30 Thermoplastic Elastomer / TPE WCH Cable


Parameters of 30V 80C Supreme Durability Audio TPE Cable:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21394 2C 30 7/0.100 0.23 0.80 >=65 0.38 3.60 381.00
28 7/0.127 0.23 0.90 >=65 0.38 3.80 239.00
26 7/0.16 0.23 1.00 >=65 0.38 3.90 150.00
24 11/0.16 0.23 1.10 >=65 0.38 4.00 94.20
22 17/0.16 0.23 1.30 >=65 0.38 4.40 59.40
20 21/0.178 0.23 1.50 >=65 0.38 4.80 36.70
18 34/0.178 0.23 1.80 >=65 0.38 5.40 23.20
16 26/0.25 0.23 2.00 >=65 0.38 5.60 14.60
UL21394 3C 30 7/0.100 0.23 0.80 >=65 0.38 3.80 381.00
28 7/0.127 0.23 0.90 >=65 0.38 4.00 239.00
26 7/0.16 0.23 1.00 >=65 0.38 4.20 150.00
24 11/0.16 0.23 1.10 >=65 0.38 4.40 94.20
22 17/0.16 0.23 1.30 >=65 0.38 5.00 59.40
20 21/0.178 0.23 1.50 >=65 0.38 5.30 36.70
18 34/0.178 0.23 1.80 >=65 0.38 5.90 23.20
UL21394 4C 30 7/0.100 0.23 0.80 >=65 0.38 4.00 381.00
28 7/0.127 0.23 0.90 >=65 0.38 4.20 239.00
26 7/0.16 0.23 1.00 >=65 0.38 4.50 150.00
24 11/0.16 0.23 1.10 >=65 0.38 4.90 94.20
22 17/0.16 0.23 1.30 >=65 0.38 5.20 59.40
20 21/0.178 0.23 1.50 >=65 0.38 5.70 36.70
UL21394 5C 30 7/0.100 0.23 0.80 >=65 0.38 4.20 381.00
28 7/0.127 0.23 0.90 >=65 0.38 4.40 239.00
26 7/0.16 0.23 1.00 >=65 0.38 4.50 150.00
24 11/0.16 0.23 1.10 >=65 0.38 4.90 94.20
22 17/0.16 0.23 1.30 >=65 0.38 5.50 59.40
UL21394 6C 30 7/0.100 0.23 0.80 >=65 0.38 4.40 381.00
28 7/0.127 0.23 0.90 >=65 0.38 4.80 239.00
26 7/0.16 0.23 1.00 >=65 0.38 5.20 150.00
24 11/0.16 0.23 1.10 >=65 0.38 5.50 94.20
