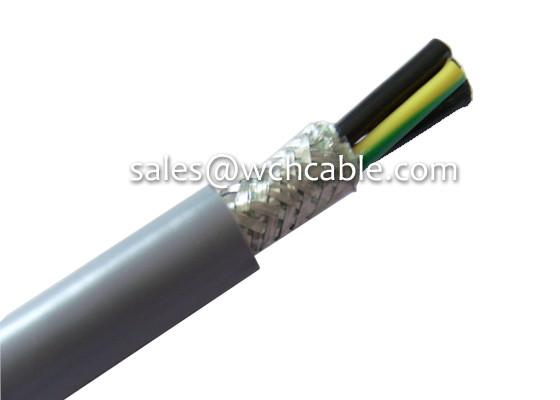

1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
1000V High Voltage Oil Resistant Braiding Shielded TPE Cable UL21184, UL21387 Hazardous Substance Free
Specifications
Brand Name :
WCH Cable
Model Number :
UL21184
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD0.10 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per spool / reel
Conductor :
Pure Copper Conductor
Insulation :
AWM Material
Rated Voltage :
1000V (High Voltage)
Jacket Material :
Elastomer TPE
Rated Temperature :
80C, 90C Degrees
Feature :
Oil Resistant
Screen Type :
Copper Braiding Shield
Style Number :
UL21184, UL21387
Description

Approval style number: UL21184

Rated temperature and voltage: 80 deg C, 90 deg C, 1000 Vac, Cable flame.

Conductor: pure copper wire conductor.

Insulation material: PVC, PP, HDPE, LDPE, SR-PVC, XL-PE, XL-PVC, TPE, FRPE.

Jacket material: Extruded TPE.

Applied standard: Appliance Wiring Material UL 758.

Application: External interconnection or internal wiring of electronic equipment.

Origin: Dongguan, China

Equivalent approval style numbers of 1000V High Voltage Oil Resistant Motor TPE Cable:

Approval Style Temperature Voltage Material Brand
UL 21184 80 1000 Thermoplastic Elastomer / TPE WCH Cable
UL 21387 90 1000 Thermoplastic Elastomer / TPE WCH Cable

Parameters of 1000V High Voltage Oil Resistant Motor TPE Cable:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21184 2C 18 34/0.178 0.76 2.80 >=65 0.76 7.80 23.20
16 26/0.25 0.76 3.10 >=65 0.76 8.40 14.60
14 41/0.25 0.76 3.50 >=65 0.76 9.20 8.96
12 65/0.25 0.76 4.00 >=65 0.76 10.2 5.64
UL21184 3C 18 34/0.178 0.76 2.80 >=65 0.76 8.20 23.20
16 26/0.25 0.76 3.10 >=65 0.76 8.80 14.60
14 41/0.25 0.76 3.50 >=65 0.76 9.80 8.96
12 65/0.25 0.76 4.00 >=65 0.76 11.00 5.64
UL21184 4C 18 34/0.178 0.76 2.80 >=65 0.76 9.00 23.20
16 26/0.25 0.76 3.10 >=65 0.76 9.80 14.60
14 41/0.25 0.76 3.50 >=65 0.76 10.80 8.96
12 65/0.25 0.76 4.00 >=65 0.76 12.00 5.64
