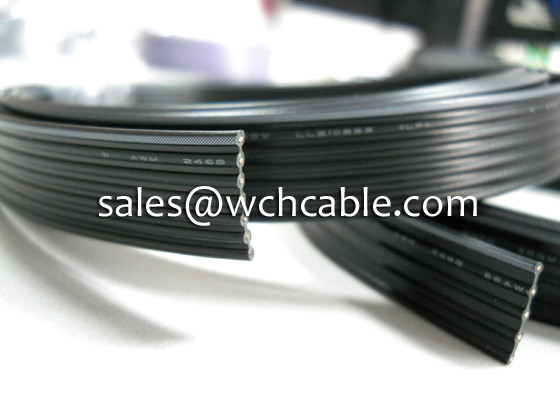

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V
Specifications
Brand Name :
WCH Cable
Model Number :
UL2468
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
610 meters
Price :
0.12 per meter
Payment Terms :
D/P, L/C, D/A, D/A, T/T, Western Union, MoneyGram
Supply Ability :
500,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
152.5 meters per reel
Approval Style :
UL2468
Insulation Material :
Polyvinyl Chloride PVC
Rated Temperature :
80°C
Rated Voltage :
300V
Feature :
RoHS & Reach Compliant
Conductor Gauge :
24AWG
Pitch Distance :
1.50mm, 2.54mm
Pins Quantity :
2~32P Available
Description

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

Style Description: UL2468, Flat Cable, Flat Ribbon Cable, PVC Flat Cable

Rating: 80 deg C, 300 Vac, Horizontal flame. Optional - 60 or 80 deg C Oil.

Insulation Material: Extruded PVC.

Standard: Appliance Wiring Material UL 758.

Application: Internal wiring.

Approval Style Number Cores Conductor Number of Conductor Pitch Insulation Thickness Overall Diameter Conductor
Resistance
NO AWG mm mm mm Ω/KM
UL2468 2 24 11/0.16 1.50 0.45 1.4×3.00 94.20
24 7/0.20 2.54 0.45 1.5×5.08 94.20
3 24 11/0.16 1.50 0.45 1.4×4.50 94.20
24 7/0.20 2.54 0.45 1.5×7.62 94.20
4 24 11/0.16 1.50 0.45 1.4×6.00 94.20
24 7/0.20 2.54 0.45 1.5×10.16 94.20
5 24 11/0.16 1.50 0.45 1.4×7.50 94.20
24 7/0.20 2.54 0.45 1.5×12.70 94.20
6 24 11/0.16 1.50 0.45 1.4×9.00 94.20
24 7/0.20 2.54 0.45 1.5×15.24 94.20
7 24 11/0.16 1.50 0.45 1.4×10.05 94.20
24 7/0.20 2.54 0.45 1.5×17.78 94.20
8 24 11/0.16 1.50 0.45 1.4×12.00 94.20
24 7/0.20 2.54 0.45 1.5×20.32 94.20
9 24 11/0.16 1.50 0.45 1.4×13.50 94.20
24 7/0.20 2.54 0.45 1.5×22.86 94.20
10 24 11/0.16 1.50 0.45 1.4×15.00 94.20
24 7/0.20 2.54 0.45 1.5×25.40 94.20
11 24 11/0.16 1.50 0.45 1.4×15.40 94.20
24 7/0.20 2.54 0.45 1.5×27.94 94.20
12 24 11/0.16 1.50 0.45 1.4×18.00 94.20
24 7/0.20 2.54 0.45 1.4×30.48 94.20
13 24 7/0.20 1.50 0.45 1.5×19.50 94.20
14 24 7/0.20 1.50 0.45 1.5×21.00 94.20
15 24 7/0.20 1.50 0.45 1.5×19.50 94.20

WCH Cable - Professional Manufacturer of Coil cable, Teflon cable, UL cable, UL2468


UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

UL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300VUL2468 PVC Flat Ribbon Cable AWG24 PH1.50 PH2.54 RoHS & Reach Compliant 80C 300V

Tag: UL2468 24AWG, PVC Flat Ribbon Cable
