Specifications
Brand Name :
WCH Cable
Model Number :
WCH-20001
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
200 pcs per box
Price :
USD 0.12 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Feature :
Flexible
Conductor :
High Purity Copper Wire
UL Style :
UL20001~29999
Jacket Type :
TPU
Performance :
High Flexibility
Supplier :
China Made
Description

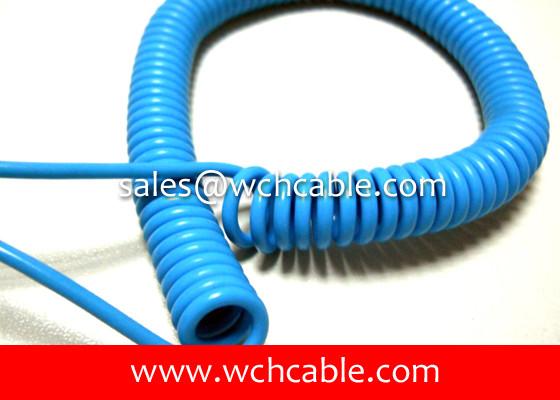

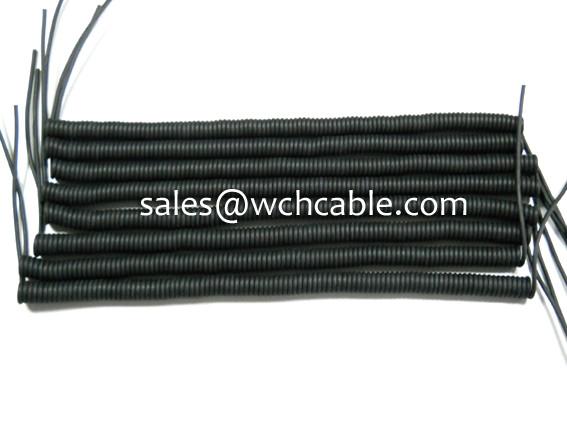

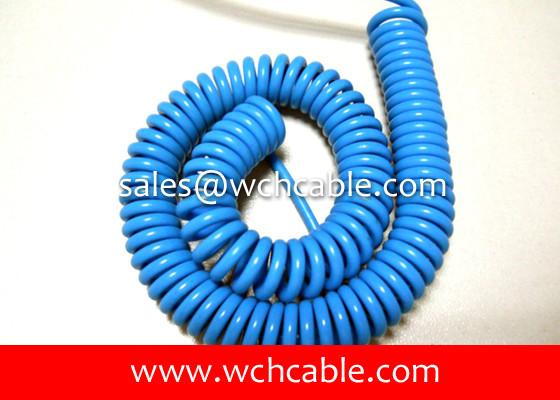

China Made UL Verified TPU Flexible Spiral Cable By High Purity Copper Conductor


Rating: 80 deg C, 600 Vac, Horizontal flame


Conductor Size: 30~16AWG

Conductor Quantity: 2 ~ 50 cores


Insulation Material: PP

Jacket Material: Polyurethane TPU


Executed Standard: Appliance Wiring Material UL 758.


Application: Internal wiring or external interconnection of appliances or electronic equipment.

Cable Type Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
Spiral Cable 2C 30 7/0.100 0.76 1.90 >=65 0.76 6.00 381.00
28 7/0.127 0.76 2.00 >=65 0.76 6.30 239.00
26 7/0.16 0.76 2.10 >=65 0.76 6.40 150.00
24 11/0.16 0.76 2.20 >=65 0.76 6.60 94.20
22 17/0.16 0.76 2.40 >=65 0.76 7.00 59.40
20 21/0.178 0.76 2.50 >=65 0.76 7.40 36.70
18 34/0.178 0.76 2.80 >=65 0.76 8.00 23.20
16 26/0.25 0.76 3.10 >=65 0.76 10.20 14.60
Spiral Cable 3C 30 7/0.100 0.76 1.90 >=65 0.76 7.90 381.00
28 7/0.127 0.76 2.00 >=65 0.76 8.10 239.00
26 7/0.16 0.76 2.10 >=65 0.76 8.30 150.00
24 11/0.16 0.76 2.20 >=65 0.76 8.50 94.20
22 17/0.16 0.76 2.40 >=65 0.76 8.90 59.40
20 21/0.178 0.76 2.50 >=65 0.76 9.40 36.70
18 34/0.178 0.76 2.80 >=65 0.76 10.00 23.20
Spiral Cable 4C 30 7/0.100 0.76 1.90 >=65 0.76 8.10 381.00
28 7/0.127 0.76 2.00 >=65 0.76 8.30 239.00
26 7/0.16 0.76 2.10 >=65 0.76 8.60 150.00
24 11/0.16 0.76 2.20 >=65 0.76 8.90 94.20
22 17/0.16 0.76 2.40 >=65 0.76 9.30 59.40
20 21/0.178 0.76 2.50 >=65 0.76 9.80 36.70
Spiral Cable 5C 30 7/0.100 0.76 1.90 >=65 0.76 8.40 381.00
28 7/0.127 0.76 2.00 >=65 0.76 8.70 239.00
26 7/0.16 0.76 2.10 >=65 0.76 8.80 150.00
24 11/0.16 0.76 2.20 >=65 0.76 9.20 94.20
22 17/0.16 0.76 2.40 >=65 0.76 9.80 59.40
Spiral Cable 6C 30 7/0.100 0.76 1.90 >=65 0.76 8.80 381.00
28 7/0.127 0.76 2.00 >=65 0.76 9.10 239.00
26 7/0.16 0.76 2.10 >=65 0.76 9.40 150.00
24 11/0.16 0.76 2.20 >=65 0.76 9.70 94.20
