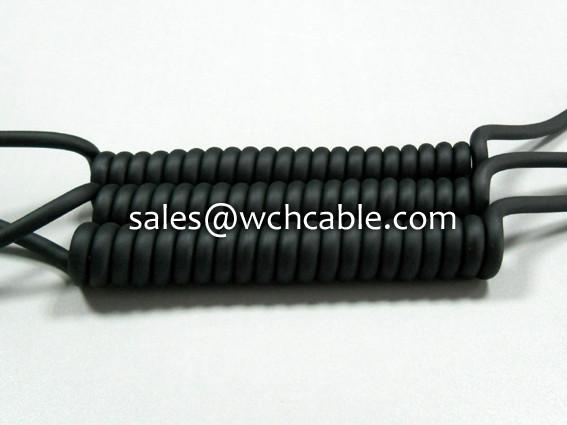

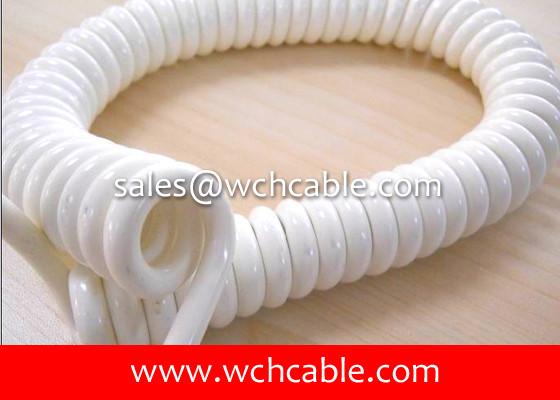

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-20001
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
200 pcs per box
Price :
USD 0.12 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Feature :
UL Approval Spiral
Conductor :
High Purity Copper Wire
UL Style :
UL20001~29999
Jacket Type :
PUR
Performance :
High Flexibility
Rated :
80℃ 300V
Description

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V


Rating: 80 deg C, 300 Vac, Horizontal flame


Conductor Size: 30~16AWG

Conductor Quantity: 3 cores


Insulation Material: PP

Jacket Material: Polyurethane PUR


Executed Standard: Appliance Wiring Material UL 758.


Application: Internal wiring or external interconnection of appliances or electronic equipment.

Cable Type Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
Spiral Cable 3C 30 7/0.100 0.23 0.80 >=65 0.38 5.30 381.00
28 7/0.127 0.23 0.90 >=65 0.38 5.50 239.00
26 7/0.16 0.23 1.00 >=65 0.38 5.70 150.00
24 11/0.16 0.23 1.10 >=65 0.38 5.90 94.20
22 17/0.16 0.23 1.30 >=65 0.38 6.30 59.40
20 21/0.178 0.23 1.50 >=65 0.38 6.80 36.70
18 34/0.178 0.23 1.80 >=65 0.38 7.40 23.20
Spiral Cable 3C 30 7/0.100 0.23 0.80 >=65 0.43 5.40 381.00
28 7/0.127 0.23 0.90 >=65 0.43 5.60 239.00
26 7/0.16 0.23 1.00 >=65 0.43 5.80 150.00
24 11/0.16 0.23 1.10 >=65 0.43 6.00 94.20
22 17/0.16 0.23 1.30 >=65 0.43 6.40 59.40
20 21/0.178 0.23 1.50 >=65 0.43 6.90 36.70
18 34/0.178 0.23 1.80 >=65 0.43 7.50 23.20
Spiral Cable 3C 30 7/0.100 0.23 0.80 >=65 0.46 5.45 381.00
28 7/0.127 0.23 0.90 >=65 0.46 5.65 239.00
26 7/0.16 0.23 1.00 >=65 0.46 5.85 150.00
24 11/0.16 0.23 1.10 >=65 0.46 6.05 94.20
22 17/0.16 0.23 1.30 >=65 0.46 6.45 59.40
20 21/0.178 0.23 1.50 >=65 0.46 6.95 36.70
18 34/0.178 0.23 1.80 >=65 0.46 7.55 23.20
Spiral Cable 3C 30 7/0.100 0.23 0.80 >=65 0.48 5.50 381.00
28 7/0.127 0.23 0.90 >=65 0.48 5.70 239.00
26 7/0.16 0.23 1.00 >=65 0.48 5.90 150.00
24 11/0.16 0.23 1.10 >=65 0.48 6.10 94.20
22 17/0.16 0.23 1.30 >=65 0.48 6.50 59.40
20 21/0.178 0.23 1.50 >=65 0.48 7.00 36.70
18 34/0.178 0.23 1.80 >=65 0.48 7.60 23.20


3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V

3 Cores UL Approval Spiral Cable PUR Jacketed Rated 80℃ 300V
