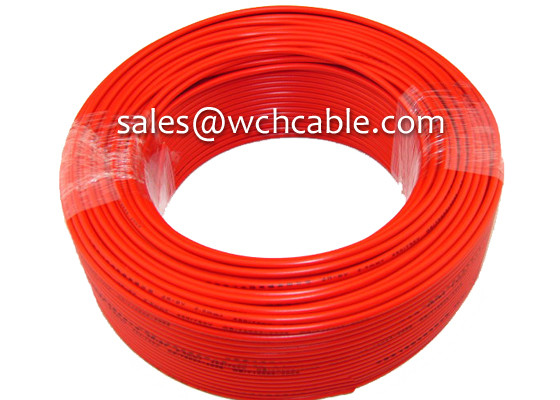

UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-UL3132
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
610 meters
Price :
USD 0.05 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
610 meters per reel
UL Style :
UL3132
Feature :
Heat Resistant
Shielded :
Non
Wire Type :
Silicone Rubber
Rated Temperature :
150℃
Rated Voltage :
300V
Description

UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V

High purity of copper wire conductors
Conductor size: 30AWG ~ 16AWG
Tinned annealed or bare, stranded or solid copper conductor.
Silicone rubber insulation.
Rated temperature 150℃.
Rated voltage 300V.
Uniform wall thickness of insulation for easy stripping and cutting.
UL VW-1 and CUL FT1 flame test verified.
Top coated conductor is available.

UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V

UL Style& Cul Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reel Ω/KM
UL3132
CUL AWM I A
(Stranded)		 30 7/0.10 0.38 1.05 2000 610 381
28 7/0.127 0.38 1.15 2000 610 239
26 7/0.16 0.38 1.25 2000 610 150
24 7/0.20 0.38 1.40 2000 610 94.2
24 11/0.16 0.38 1.40 2000 610 94.2
22 7/0.25 0.38 1.55 2000 610 59.4
22 17/0.16 0.38 1.55 2000 610 59.4
20 7/0.31 0.38 1.75 2000 610 36.70
20 21/0.178 0.38 1.75 2000 610 36.70
18 7/0.39 0.38 1.98 2000 610 23.20
18 34/0.178 0.38 1.98 2000 610 23.20
16 7/0.50 0.38 2.33 2000 610 14.60
16 26/0.25 0.38 2.33 2000 610 14.60
UL3132
CUL AWM I A
(Solid)		 30 1/0.25 0.38 1.05 2000 610 354
28 1/0.32 0.38 1.12 2000 610 223
26 1/0.40 0.38 1.25 2000 610 140
24 1/0.51 0.38 1.32 2000 610 87.5
22 1/0.64 0.38 1.45 2000 610 55.0
20 1/0.81 0.38 1.62 2000 610 34.6
18 1/1.02 0.38 1.82 2000 610 21.8
16 1/1.29 0.38 2.13 2000 610 13.7

UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V

UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V


UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V

UL3132 Heat Resistant Flexible Silicone Rubber Hook-Up Wire Rated 150℃ 300V
