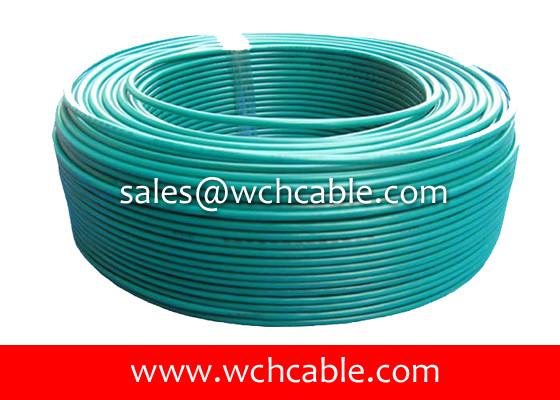

UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-UL3123
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
610 meters
Price :
USD 0.05 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
610 meters per reel
UL Style :
UL3123
Feature :
Ultra Flexible
Shielded :
Non
Wire Type :
Silicone Rubber
Rated Temperature :
150℃
Rated Voltage :
600V
Description

UL3123 Untra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V

High purity of copper wire conductors
Conductor size: 30AWG ~ 16AWG
Tinned annealed or bare, stranded or solid copper conductor.
Silicone rubber insulation.
Rated temperature 150℃.
Rated voltage 600V.
Uniform wall thickness of insulation for easy stripping and cutting.
UL VW-1 and CUL FT1 flame test verified.
Top coated conductor is available.

UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V

UL Style& Cul Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reel Ω/KM
UL3123
CUL AWM I A
(Stranded)		 30 7/0.10 0.76 1.83 2000 610 381
28 7/0.127 0.76 1.90 2000 610 239
26 7/0.16 0.76 2.02 2000 610 150
24 7/0.20 0.76 2.17 2000 610 94.2
11/0.16 0.76 2.17 2000 610 94.2
22 7/0.25 0.76 2.36 2000 610 59.4
17/0.16 0.76 2.36 2000 610 59.4
20 7/0.31 0.76 2.48 2000 610 36.70
21/0.178 0.76 2.48 2000 610 36.70
18 7/0.39 0.76 2.75 2000 610 23.20
34/0.178 0.76 2.75 2000 610 23.20
16 7/0.5 0.76 3.09 1000 305 14.60
26/0.25 0.76 3.09 1000 305 14.60
UL3123
CUL AWM I A
(Solid)		 30 1/0.25 0.76 1.77 2000 610 354
28 1/0.32 0.76 1.84 2000 610 223
26 1/0.39 0.76 2.02 2000 610 140
24 1/0.51 0.76 2.17 2000 610 87.5
22 1/0.64 0.76 2.36 2000 610 55.0
20 1/0.81 0.76 2.48 2000 610 34.6
18 1/1.02 0.76 2.75 2000 610 21.8
16 1/1.29 0.76 3.09 1000 305 13.7

UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V

UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V

UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V

UL3123 Utra Flexible Non Shielded Silicone Rubber Wire Rated 150℃ 600V
