UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
Specifications
Brand Name :
WCH Cable
Model Number :
UL3289
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
610 meters
Price :
USD 0.03 per meter
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
4000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
610 meters per reel
Feature :
Medium Voltage
Wire Type :
XLPE
Rated Temperature :
150℃
Rated Voltage :
600V, 750V
UL Style :
UL3289
Irradiated :
Yes
Description

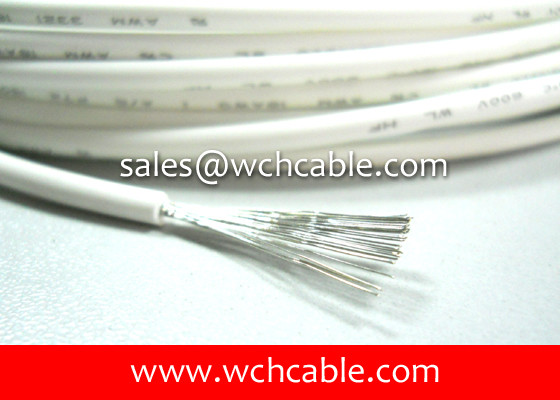

UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

Tinned, annealed, stranded or solid copper conductor.

XL-PE insulation.

Rated temperature: 150℃. Rated voltage: 600/750volts.

Uniform thickness of wire to ensure easy stripping and cutting.

UL VW-1 vertical flame test verified.

Top coated conductor is available.

Application: For general purpose internal wiring of electronic or electrical equipment.

UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reell Ω/KM
UL3289
(Stranded)		 26 7/0.160 0.76 2.10 2000 610 150.00
24 11/0.160 0.76 2.20 2000 610 94.20
22 17//0.160 0.76 2.40 2000 610 59.40
20 21/0.178 0.76 2.50 2000 610 36.70
18 34/0.178 0.76 2.80 2000 610 23.20
16 26/0.250 0.76 3.10 1000 305 16.57
14 41/0.250 0.76 3.50 1000 305 8.96
12 65/0.250 0.76 4.00 1000 305 5.64
10 105/0.250 0.76 4.60 1000 305 3.55
UL3289
(Top-coated)		 26 7/0.160 0.76 2.10 2000 610 150.00
24 7/0.200 0.76 2.20 2000 610 94.20
22 7/0.250 0.76 2.40 2000 610 59.40
UL3289
(Solid)		 26 1/0.404 0.76 1.95 2000 610 150.00
24 1/0.511 0.76 2.15 2000 610 94.20
22 1/0.643 0.76 2.30 2000 610 59.40
20 1/0.813 0.76 2.50 2000 610 36.70
18 1/1.024 0.76 2.70 2000 610 23.20

UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free
