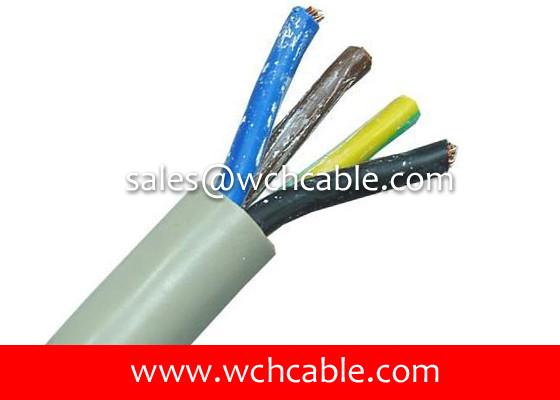

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-UL20855
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.15 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meter per Month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Feature :
Power Control, LSZH
Type :
FRPE, FR-PE
UL Style :
UL20855
Reach Compliant :
Yes
Halogen Free :
Yes
Conductor :
Pure Copper Wire
Description

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE

Rated Temperature: 80C

Rated Voltage: 30V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL 758.

Application: Internal wiring or external interconnection of electronic equipment.

Parameters of China Electrical Power Control Cable UL20855 FR-PE Jacketed:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20855 2C 30 7/0.100 0.23 0.80 >=65 0.86 3.40 381.00
28 7/0.127 0.23 0.90 >=65 0.86 3.60 239.00
26 7/0.16 0.23 1.00 >=65 0.86 3.80 150.00
24 11/0.16 0.23 1.10 >=65 0.86 4.00 94.20
22 17/0.16 0.23 1.30 >=65 0.86 4.40 59.40
20 21/0.178 0.23 1.50 >=65 0.86 4.80 36.70
18 34/0.178 0.23 1.80 >=65 0.86 5.40 23.20
16 26/0.25 0.23 2.10 >=65 0.86 6.00 14.60
UL20855 3C 30 7/0.100 0.23 0.80 >=65 0.86 3.60 381.00
28 7/0.127 0.23 0.90 >=65 0.86 3.70 239.00
26 7/0.16 0.23 1.00 0.65 0.86 4.00 150.00
24 11/0.16 0.23 1.10 >=65 0.86 4.20 94.20
22 17/0.16 0.23 1.30 >=65 0.86 4.60 59.40
20 21/0.178 0.23 1.50 >=65 0.86 5.00 36.70
18 34/0.178 0.23 1.80 >=65 0.86 5.70 23.20
UL20855 4C 30 7/0.100 0.23 0.80 >=65 0.86 5.00 381.00
28 7/0.127 0.23 0.90 >=65 0.86 5.30 239.00
26 7/0.16 0.23 1.00 >=65 0.86 5.50 150.00
24 11/0.16 0.23 1.10 >=65 0.86 5.70 94.20
22 17/0.16 0.23 1.30 >=65 0.86 6.20 59.40
20 21/0.178 0.23 1.50 >=65 0.86 6.70 36.70
UL20855 5C 30 7/0.100 0.23 0.80 >=65 0.86 5.20 381.00
28 7/0.127 0.23 0.90 >=65 0.86 5.50 239.00
26 7/0.16 0.23 1.00 >=65 0.86 5.80 150.00
24 11/0.16 0.23 1.10 >=65 0.86 6.00 94.20
22 17/0.16 0.23 1.30 >=65 0.86 6.60 59.40
UL20855 6C 30 7/0.100 0.23 0.80 >=65 0.86 5.50 381.00
28 7/0.127 0.23 0.90 >=65 0.86 5.80 239.00
26 7/0.16 0.23 1.00 >=65 0.86 6.10 150.00
24 11/0.16 0.23 1.10 >=65 0.86 6.40 94.20

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

UL20855 China Made FR-PE Jacketed LSZH Electrical Power Control Cable

Tag: UL20855, electrical power cable, fr-pe jacketed cable
