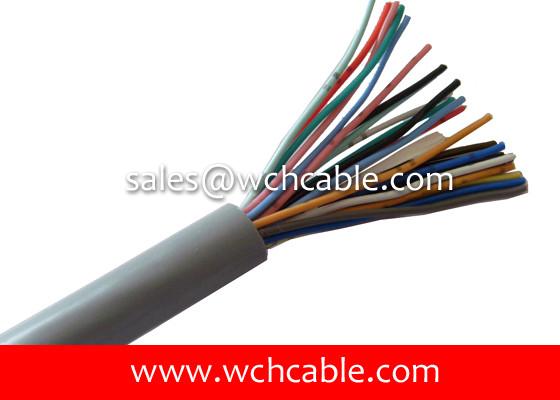

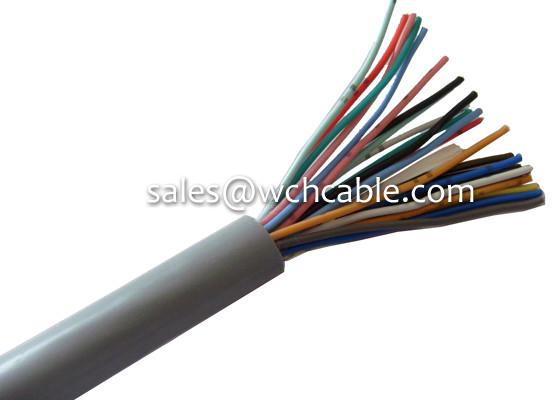

UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V
Specifications
Brand Name :
WCH Cable
Model Number :
UL21080
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.15 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meter per Month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Feature :
Low Smoke, LSZH
Lead Free :
Yes
Cable Type :
FRPE, FR-PE
RoHS Compliant :
Yes
UL Style :
UL21080
Reach Compliant :
Yes
Description

UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE

Rated Temperature: 75C

Rated Voltage: 300V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL 758.

Application: Internal wiring of appliances and external interconnection of electronic equipment.

Parameters of Low Smoke Lead Free FRPE Cable UL21080:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21080 2C 30 7/0.100 0.23 0.80 >=65 0.69 3.00 381.00
28 7/0.127 0.23 0.90 >=65 0.69 3.20 239.00
26 7/0.16 0.23 1.00 >=65 0.69 3.40 150.00
24 11/0.16 0.23 1.10 >=65 0.69 3.60 94.20
22 17/0.16 0.23 1.30 >=65 0.69 4.00 59.40
20 21/0.178 0.23 1.50 >=65 0.69 4.40 36.70
18 34/0.178 0.23 1.80 >=65 0.69 5.00 23.20
16 26/0.25 0.23 2.10 >=65 0.69 5.60 14.60
UL21080 3C 30 7/0.100 0.23 0.80 >=65 0.69 3.20 381.00
28 7/0.127 0.23 0.90 >=65 0.69 3.30 239.00
26 7/0.16 0.23 1.00 0.65 0.69 3.60 150.00
24 11/0.16 0.23 1.10 >=65 0.69 3.80 94.20
22 17/0.16 0.23 1.30 >=65 0.69 4.20 59.40
20 21/0.178 0.23 1.50 >=65 0.69 4.60 36.70
18 34/0.178 0.23 1.80 >=65 0.69 5.30 23.20
UL21080 4C 30 7/0.100 0.23 0.80 >=65 0.69 4.60 381.00
28 7/0.127 0.23 0.90 >=65 0.69 4.90 239.00
26 7/0.16 0.23 1.00 >=65 0.69 5.10 150.00
24 11/0.16 0.23 1.10 >=65 0.69 5.30 94.20
22 17/0.16 0.23 1.30 >=65 0.69 5.80 59.40
20 21/0.178 0.23 1.50 >=65 0.69 6.30 36.70
UL21080 5C 30 7/0.100 0.23 0.80 >=65 0.69 4.80 381.00
28 7/0.127 0.23 0.90 >=65 0.69 5.10 239.00
26 7/0.16 0.23 1.00 >=65 0.69 5.40 150.00
24 11/0.16 0.23 1.10 >=65 0.69 5.60 94.20
22 17/0.16 0.23 1.30 >=65 0.69 6.20 59.40
UL21080 6C 30 7/0.100 0.23 0.80 >=65 0.69 5.10 381.00
28 7/0.127 0.23 0.90 >=65 0.69 5.40 239.00
26 7/0.16 0.23 1.00 >=65 0.69 5.70 150.00
24 11/0.16 0.23 1.10 >=65 0.69 6.00 94.20


UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V

UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V

UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V

UL21080 Low Smoke Lead Free FR-PE Sheathed LSZH Cable 75C 300V

Tag: UL21080, Low smoke lead free cable, FR-PE sheathed cable
