Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-UL20852
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.155 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meter per Month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Category :
UL LSZH Cable
Jacket Type :
LSZH Material
Feature :
Extremely Flexible
Conductors :
3 Cores
Manufacturer :
WCH Cable
Standard :
LSZH Applied
Description

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

Properties:

Conductor: High Purity of Copper Wire, Stranded or Solid, Optional

Insulation: HDPE, XLPE, FRPE, PP

Jacket: LSZH materials

Rated Temperature: 80C

Rated Voltage: 600V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL758.

Application: Internal wiring or external interconnection of electronic equipment (such as desk-type calculators, dictating machines, or X-ray equipment)

Parameters:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20851 2C 30 7/0.100 0.23 0.80 >=65 0.56 2.80 381.00
28 7/0.127 0.23 0.90 >=65 0.56 3.10 239.00
26 7/0.16 0.23 1.00 >=65 0.56 3.30 150.00
24 11/0.16 0.23 1.10 >=65 0.56 3.50 94.20
22 17/0.16 0.23 1.30 >=65 0.56 3.90 59.40
20 21/0.178 0.23 1.50 >=65 0.56 4.30 36.70
18 34/0.178 0.23 1.80 >=65 0.56 4.90 23.20
16 26/0.25 0.23 2.10 >=65 0.56 5.50 14.60
UL20851 3C 30 7/0.100 0.23 0.80 >=65 0.56 3.10 381.00
28 7/0.127 0.23 0.90 >=65 0.56 3.20 239.00
26 7/0.16 0.23 1.00 >=65 0.56 3.50 150.00
24 11/0.16 0.23 1.10 >=65 0.56 3.70 94.20
22 17/0.16 0.23 1.30 >=65 0.56 4.10 59.40
20 21/0.178 0.23 1.50 >=65 0.56 4.50 36.70
18 34/0.178 0.23 1.80 >=65 0.56 5.20 23.20
UL20851 4C 30 7/0.100 0.23 0.80 >=65 0.56 4.50 381.00
28 7/0.127 0.23 0.90 >=65 0.56 4.90 239.00
26 7/0.16 0.23 1.00 >=65 0.56 5.00 150.00
24 11/0.16 0.23 1.10 >=65 0.56 5.20 94.20
22 17/0.16 0.23 1.30 >=65 0.56 5.70 59.40
20 21/0.178 0.23 1.50 >=65 0.56 6.20 36.70
UL20851 5C 30 7/0.100 0.23 0.80 >=65 0.56 4.70 381.00
28 7/0.127 0.23 0.90 >=65 0.56 5.00 239.00
26 7/0.16 0.23 1.00 >=65 0.56 5.30 150.00
24 11/0.16 0.23 1.10 >=65 0.56 5.50 94.20
22 17/0.16 0.23 1.30 >=65 0.56 6.10 59.40
UL20851 6C 30 7/0.100 0.23 0.80 >=65 0.56 5.00 381.00
28 7/0.127 0.23 0.90 >=65 0.56 5.30 239.00
26 7/0.16 0.23 1.00 >=65 0.56 5.60 150.00
24 11/0.16 0.23 1.10 >=65 0.56 5.90 94.20

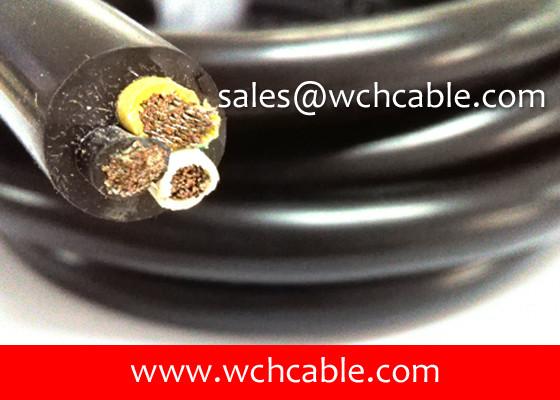

Product Images:

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant


Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

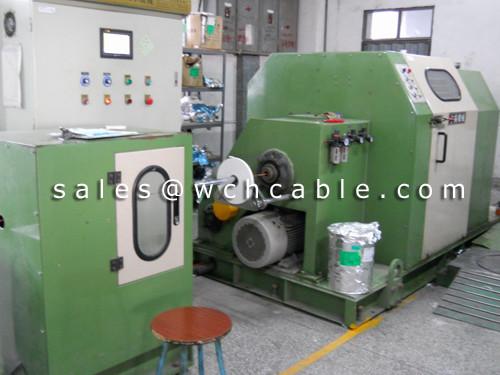

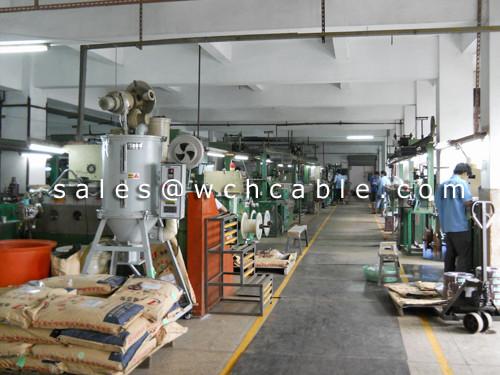

Extruding Machines:

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

Certificate of High Purity Copper Wire Conductors:

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant

(Tag: Cable, UL cable, LSZH cable)
