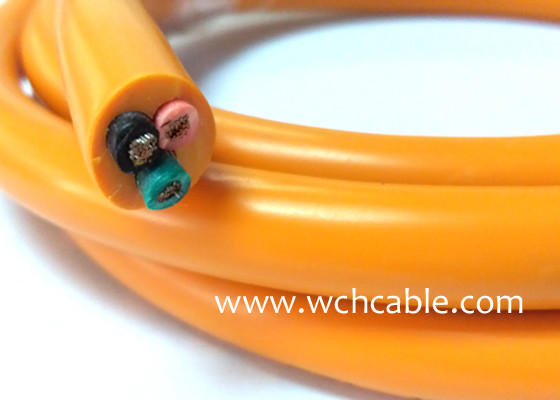

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-UL20549
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.14 per meter
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300,000 meters per Month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Category :
UL TPU Cable
Conductor :
High Purity Copper Wire
Jacket :
Thermoplastic Polyurethane TPU
Insulation :
PE, PP, SR-PVC, TPE, XLPE
Colour :
Orange
Application :
Control Cable
Description

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

Product Structure:

1. Tinned stranded or bare annealed copper conductor.

2. Insulation material: PP, PVC, SR-PVC, HDPE, FR-PE

3. Rated temperature: 80C.

4. Rated voltage: 300V.

5. Uniform insulation wall thickness for easy stripping and cutting.

6. UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.

7. Jacket material: Thermoplastic Polyurethane PU / PUR / TPU

8. Standard executed: Appliance Wiring Material UL758

9. 100% RoHS compliant.

Application:

To be use as Control cable as Internal wiring or external interconnection of appliances or electronic equipment.

Parameters:

Part Number Specification Conductor Strands Jacket Thickness Conductor Resistance
Ul23751 30 AWG x 2 Cores 7/0.10 35 mils / 0.89mm 381.00
Ul23752 28 AWG x 2 Cores 8/0.12 35 mils / 0.89mm 239.00
Ul23753 26 AWG x 2 Cores 12/0.12 35 mils / 0.89mm 150.00
Ul23754 24 AWG x 2 Cores 19/0.12 35 mils / 0.89mm 94.20
Ul23755 22 AWG x 2 Cores 29/0.12 35 mils / 0.89mm 59.40
Ul23756 20 AWG x 2 Cores 46/0.12 35 mils / 0.89mm 36.70
Ul23757 18 AWG x 2 Cores 73/0.12 35 mils / 0.89mm 23.20
Ul23758 16 AWG x 2 Cores 116/0.12 35 mils / 0.89mm 14.60
Ul23759 30 AWG x 3 Cores 7/0.10 35 mils / 0.89mm 381.00
Ul23760 28 AWG x 3 Cores 8/0.12 35 mils / 0.89mm 239.00
Ul23761 26 AWG x 3 Cores 12/0.12 35 mils / 0.89mm 150.00
Ul23762 24 AWG x 3 Cores 19/0.12 35 mils / 0.89mm 94.20
Ul23763 22 AWG x 3 Cores 29/0.12 35 mils / 0.89mm 59.40
Ul23764 20 AWG x 3 Cores 46/0.12 35 mils / 0.89mm 36.70
Ul23765 18 AWG x 3 Cores 73/0.12 35 mils / 0.89mm 23.20
Ul23766 30 AWG x 4 Cores 7/0.10 35 mils / 0.89mm 381.00
Ul23767 28 AWG x 4 Cores 8/0.12 35 mils / 0.89mm 239.00
Ul23768 26 AWG x 4 Cores 12/0.12 35 mils / 0.89mm 150.00
Ul23769 24 AWG x 4 Cores 19/0.12 35 mils / 0.89mm 94.20
Ul23770 22 AWG x 4 Cores 29/0.12 35 mils / 0.89mm 59.40
Ul23771 20 AWG x 4 Cores 46/0.12 35 mils / 0.89mm 36.70
Ul23772 30 AWG x 5 Cores 7/0.10 35 mils / 0.89mm 381.00
Ul23773 28 AWG x 5 Cores 8/0.12 35 mils / 0.89mm 239.00
Ul23774 26 AWG x 5 Cores 12/0.12 35 mils / 0.89mm 150.00
Ul23775 24 AWG x 5 Cores 19/0.12 35 mils / 0.89mm 94.20
Ul23776 22 AWG x 5 Cores 29/0.12 35 mils / 0.89mm 59.40
Ul23777 30 AWG x 6 Cores 7/0.10 35 mils / 0.89mm 381.00
Ul23778 28 AWG x 6 Cores 8/0.12 35 mils / 0.89mm 239.00
Ul23779 26 AWG x 6 Cores 12/0.12 35 mils / 0.89mm 150.00
Ul23780 24 AWG x 6 Cores 19/0.12 35 mils / 0.89mm 94.20

Product Images:

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

Manufacturing Workshop:

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

Cable Warehouse:

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
