UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V
Specifications
Brand Name :
WCH Cable
Model Number :
UL20281
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200 pcs
Price :
USD0.346 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Conductor :
High purity copper wire
Rated Temperature :
80 Deg C
Insulation :
AWM Appliant Material
Rated Voltage :
250V, or TBD per request.
Jacket Material :
Thermoplastic Polyurethane TPU
Executed Standard :
UL758, UL20281
Description

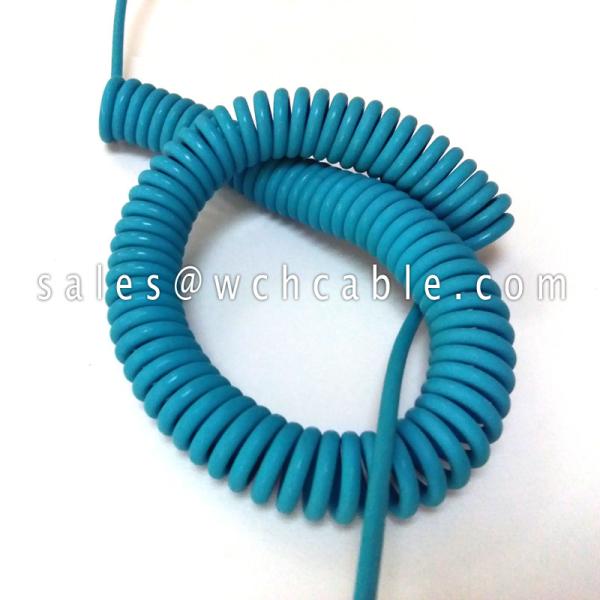

UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU.
Standard: Appliance Wiring Material UL758.
Rated Temperature: 80 deg C.
Rated Voltage: 250V, or to be determined by customer per request.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Internal wiring & external wiring of electronic appliances.
Outstanding Feature: very quick recall after strength.

Parameters of UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20281 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20


UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

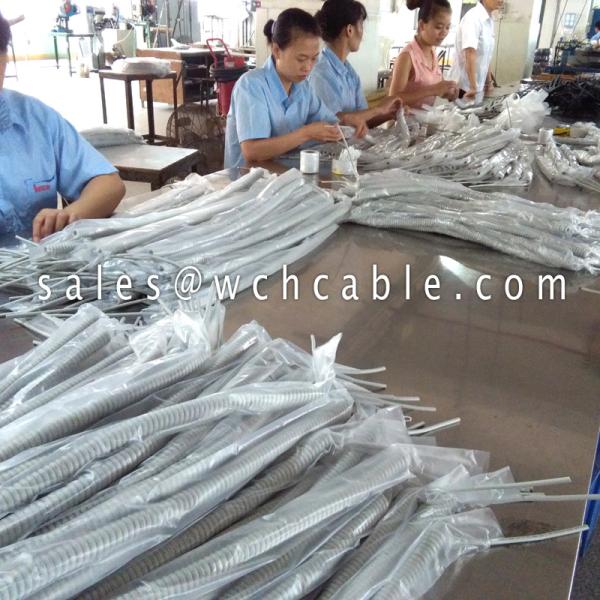

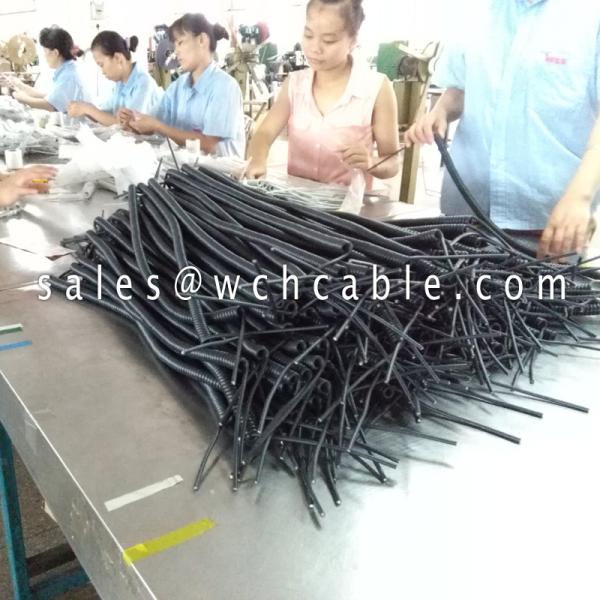

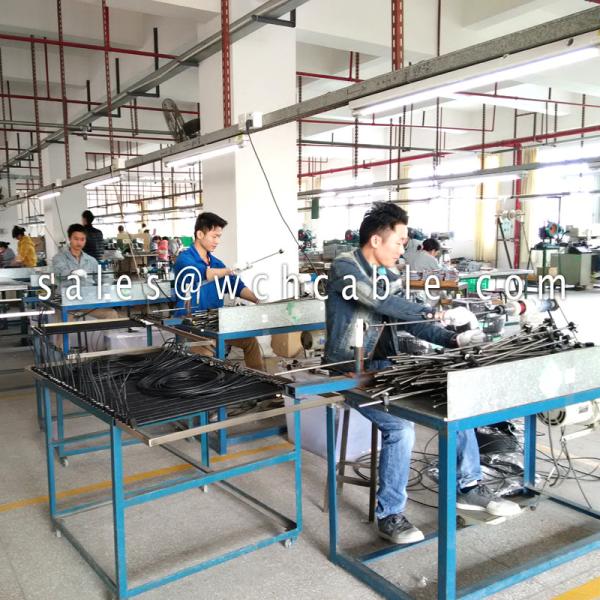

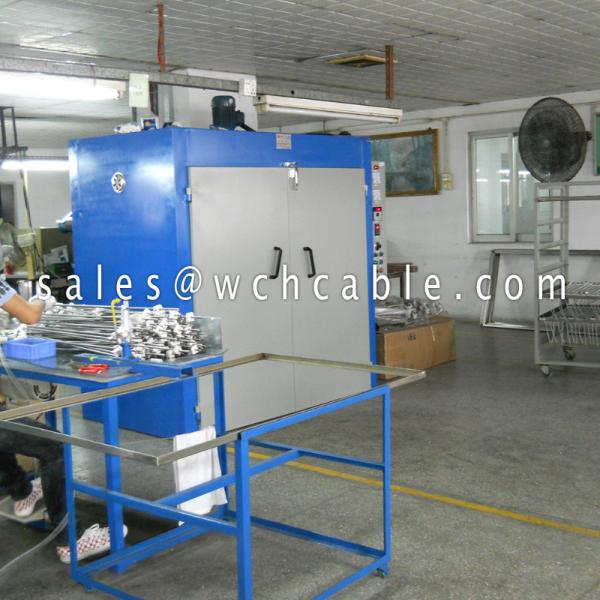

All the production procedures are well managed within WCH Cable factory, including spiral coiling, and raw cable extrusion as well.

UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

UL20281 Quick Recall Pure Copper Wire Screened Spiral Cable 80C 250V

Tag: UL20281, spiral cable
