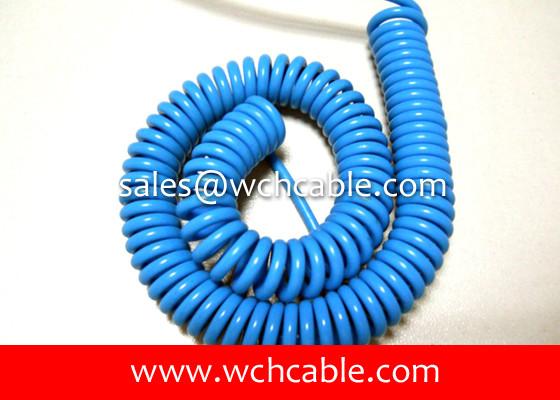

UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
Specifications
Brand Name :
WCH Cable
Model Number :
UL20280
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
200 pcs per box
Price :
USD 0.123 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Feature :
Flexible TPU, Suitable for spiral coiling process
Conductor :
Pure Copper Wire
UL Style :
UL20280
Gauge :
26AWG
Application :
Crane Machine
Standard :
UL758, CSA22.2
Description

UL Style Description: UL20280 (26AWG) Oil Resistant TPU Spiral Cable


Rating: 80 deg C, 300 Vac, Horizontal flame


Conductor Size: 26AWG

Conductor Quantity: 2 ~ 50 cores


Insulation Material: PP


Executed Standard: Appliance Wiring Material UL 758.


Application: Internal wiring or external interconnection of appliances or electronic equipment.

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20280
(CUL)		 2C 24 11/0.16 0.23 1.10 >=65 0.86 4.60 94.20
3C 24 11/0.16 0.23 1.10 >=65 0.86 4.70 94.20
4C 24 11/0.16 0.23 1.10 >=65 0.86 5.00 94.20
5C 24 11/0.16 0.23 1.10 >=65 0.86 5.20 94.20
6C 24 11/0.16 0.23 1.10 >=65 0.86 5.70 94.20

Spec Download: UL20280, UL20280 specification

UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated WireUL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire

UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire

UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire

UL20280 (26AWG) 8 Conductors Oil Resistant TPU Spiral Cable Blue Jacket with Colorful PP Insulated Wire
