UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V
UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V
UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V
UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V
Specifications
Brand Name :
WCH Cable
Model Number :
UL20937
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200pcs
Price :
USD0.55 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Conductor :
High purity copper wire
Insulation :
AWM compliant materials
Jacket Material :
Thermoplastic Polyurethane TPU
Rated Temperature :
80 Deg C
Rated Voltage :
30V
Outstanding Feature :
For Electronic use
Description

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

Conductor: High Purity Annealed Tinned Stranded Copper Wire
Insulation: TPE / Thermoplastic Elastomer

Jacket: TPU / Polyurethane
Rated Temperature: 80 Deg C
Rated Voltage: 30V
Uniform wall thickness for smooth stripping & process treatment.
Applied Standard: UL758
Feature: for light duty electronic appliances use.

Parameters of UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20937 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

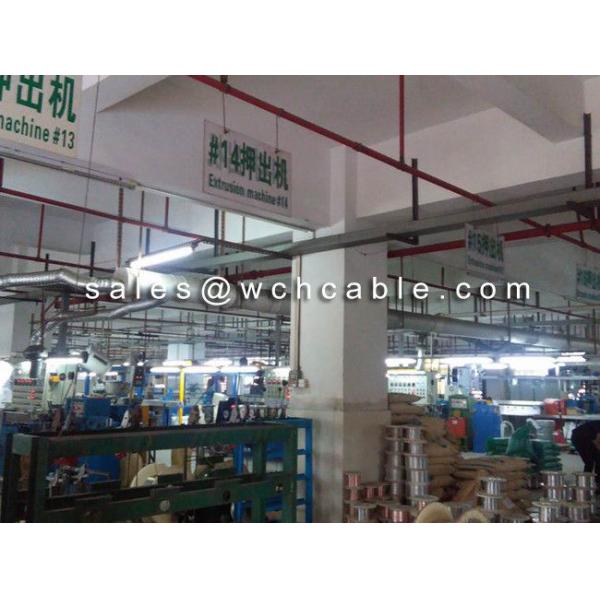

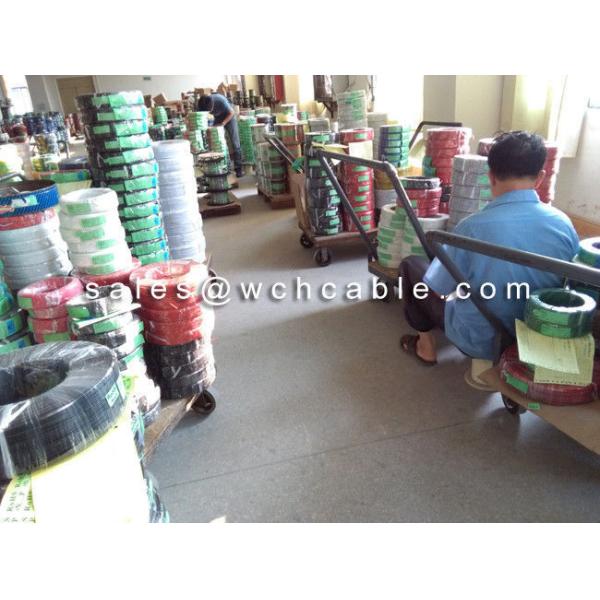

Spiral coiling process and raw cable extrusion both are well managed within WCH Cable factory:

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V

UL20937 Light Duty Electronic Interconnection Spring Coiled Cable 80C 30V
