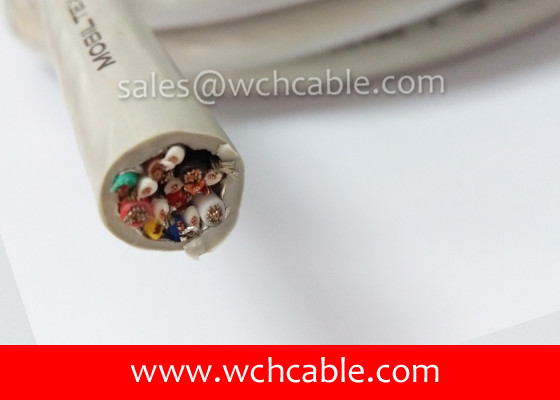

UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
UL21324 TPU Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL21324
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.12 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
3,000,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL21324
Conductor Material :
Highly Pure Copper Wires
Rated Temperature :
60°C
Insulation Material :
Thermoplastic TPU
Rated Voltage :
300V
Jacket Material :
Thermoplastic TPU
Jacket Thickness :
15 mils
Feature :
Water and dust resistant
Description

UL21324 TPU Cable

UL21324 is fabricated with oxygen-free pure copper conductors, of which the purity is up to 99.99%. It is featured as perfect electrical conductivity, wonderful processing performance, good corrosion resistance and so on.

TPU cable style: UL21324

Rated: 60°C, 300V

Conductor material: pure copper wire strands.

Insulation material: thermoplastic TPU.

Jacket material: thermoplastic TPU.

Feature: water and dust resistant.

Application: industry equipment connection.

TPU Cable Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21324 3C 28 7/0.127 0.23 0.90 0.381 2.80 239.00
3C 26 7/0.16 0.23 1.00 0.381 3.02 150.00
3C 24 11/0.16 0.23 1.10 0.381 3.23 94.20
3C 22 17/0.16 0.23 1.30 0.381 3.66 59.40
3C 20 21/0.178 0.23 1.50 0.381 4.09 36.70
3C 18 34/0.178 0.23 1.70 0.381 4.53 23.20
3C 16 26/0.254 0.23 2.10 0.381 5.39 14.60
4C 28 7/0.127 0.23 0.90 0.381 3.03 239.00
4C 26 7/0.16 0.23 1.00 0.381 3.28 150.00
4C 24 11/0.16 0.23 1.10 0.381 3.52 94.20
4C 22 17/0.16 0.23 1.30 0.381 4.00 59.40
4C 20 21/0.178 0.23 1.50 0.381 4.48 36.70
4C 18 34/0.178 0.23 1.70 0.381 4.97 23.20
4C 16 26/0.254 0.23 2.10 0.381 5.93 14.60
5C 28 7/0.127 0.23 0.90 0.381 3.29 239.00
5C 26 7/0.16 0.23 1.00 0.381 3.56 150.00
5C 24 11/0.16 0.23 1.10 0.381 3.83 94.20
5C 22 17/0.16 0.23 1.30 0.381 4.37 59.40
5C 20 21/0.178 0.23 1.50 0.381 4.91 36.70
5C 18 34/0.178 0.23 1.70 0.381 5.45 23.20
5C 16 26/0.254 0.23 2.10 0.381 6.53 14.60
6C 28 7/0.127 0.23 0.90 0.381 3.56 239.00
6C 26 7/0.16 0.23 1.00 0.381 3.86 150.00
6C 24 11/0.16 0.23 1.10 0.381 4.16 94.20
6C 22 17/0.16 0.23 1.30 0.381 4.76 59.40
6C 20 21/0.178 0.23 1.50 0.381 5.36 36.70
6C 18 34/0.178 0.23 1.70 0.381 5.96 23.20
6C 16 26/0.254 0.23 2.10 0.381 7.16 14.60
7C 28 7/0.127 0.23 0.90 0.381 3.61 239.00
7C 26 7/0.16 0.23 1.00 0.381 3.92 150.00
7C 24 11/0.16 0.23 1.10 0.381 4.22 94.20
7C 22 17/0.16 0.23 1.30 0.381 4.83 59.40
7C 20 21/0.178 0.23 1.50 0.381 5.45 36.70
7C 18 34/0.178 0.23 1.70 0.381 6.06 23.20
7C 16 26/0.254 0.23 2.10 0.381 7.28 14.60
8C 28 7/0.127 0.23 0.90 0.381 3.80 239.00
8C 26 7/0.16 0.23 1.00 0.381 4.13 150.00
8C 24 11/0.16 0.23 1.10 0.381 4.46 94.20
8C 22 17/0.16 0.23 1.30 0.381 5.11 59.40
8C 20 21/0.178 0.23 1.50 0.381 5.76 36.70
8C 18 34/0.178 0.23 1.70 0.381 6.42 23.20
9C 28 7/0.127 0.23 0.90 0.381 3.98 239.00
9C 26 7/0.16 0.23 1.00 0.381 4.33 150.00
9C 24 11/0.16 0.23 1.10 0.381 4.67 94.20
9C 22 17/0.16 0.23 1.30 0.381 5.37 59.40
9C 20 21/0.178 0.23 1.50 0.381 6.06 36.70

UL21324 TPU Cable

UL21324 TPU CableUL21324 TPU Cable

UL21324 TPU CableUL21324 TPU Cable

Tag: UL21324, TPU Cable
