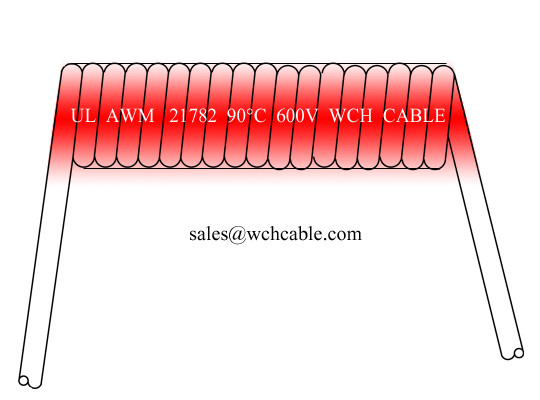

UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
UL21782 Electric Equipment Extendable Curly Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL21782
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
200 pcs per box
Price :
USD 0.23 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Curly Style :
UL21782
Conductor Material :
Pure Copper Wire Strands
Rated Temperature :
90°C
Rated Voltage :
600V
Insulation Material :
Thermoplastic TPU
Jacket Material :
Thermoplastic TPU
Feature :
Extendable, Highly Elastic
Application :
Electric Equipment
Description

UL21782 Electric Equipment Extendable Curly Cable

Curly cable style: UL21782

Rated: 90°C, 600V.

UL21782 Electric Equipment Extendable Curly Cable

Insulation Material: Thermoplastic TPU.

Jacket Material: Thermoplastic TPU.

UL21782 Electric Equipment Extendable Curly Cable

Feature: highly elastic, best for connection under limit space.

Extended Distance: cable diameter x 3.5~4.

UL21782 Electric Equipment Extendable Curly Cable

Executed Standard: UL1581, UL758.

Application: Electric equipment interconnection.

Specification Parameters:

Curly Style Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21782 3C 28 7/0.127 0.76 2.00 0.76 5.93 239.00
3C 26 7/0.16 0.76 2.10 0.76 6.15 150.00
3C 24 11/0.16 0.76 2.20 0.76 6.36 94.20
3C 22 17/0.16 0.76 2.40 0.76 6.79 59.40
3C 20 21/0.178 0.76 2.50 0.76 7.01 36.70
3C 18 34/0.178 0.76 2.80 0.76 7.65 23.20
3C 16 26/0.254 0.76 3.10 0.76 8.30 14.60
4C 28 7/0.127 0.76 2.00 0.76 6.45 239.00
4C 26 7/0.16 0.76 2.10 0.76 6.69 150.00
4C 24 11/0.16 0.76 2.20 0.76 6.93 94.20
4C 22 17/0.16 0.76 2.40 0.76 7.41 59.40
4C 20 21/0.178 0.76 2.50 0.76 7.66 36.70
4C 18 34/0.178 0.76 2.80 0.76 8.38 23.20
4C 16 26/0.254 0.76 3.10 0.76 9.10 14.60
5C 28 7/0.127 0.76 2.00 0.76 7.02 239.00
5C 26 7/0.16 0.76 2.10 0.76 7.29 150.00
5C 24 11/0.16 0.76 2.20 0.76 7.56 94.20
5C 22 17/0.16 0.76 2.40 0.76 8.10 59.40
5C 20 21/0.178 0.76 2.50 0.76 8.37 36.70
5C 18 34/0.178 0.76 2.80 0.76 9.18 23.20
5C 16 26/0.254 0.76 3.10 0.76 9.99 14.60
6C 28 7/0.127 0.76 2.00 0.76 7.62 239.00
6C 26 7/0.16 0.76 2.10 0.76 7.92 150.00
6C 24 11/0.16 0.76 2.20 0.76 8.22 94.20
6C 22 17/0.16 0.76 2.40 0.76 8.82 59.40
6C 20 21/0.178 0.76 2.50 0.76 9.12 36.70
6C 18 34/0.178 0.76 2.80 0.76 10.02 23.20
6C 16 26/0.254 0.76 3.10 0.76 10.92 14.60
7C 28 7/0.127 0.76 2.00 0.76 7.73 239.00
7C 26 7/0.16 0.76 2.10 0.76 8.04 150.00
7C 24 11/0.16 0.76 2.20 0.76 8.34 94.20
7C 22 17/0.16 0.76 2.40 0.76 8.95 59.40
7C 20 21/0.178 0.76 2.50 0.76 9.26 36.70
7C 18 34/0.178 0.76 2.80 0.76 10.18 23.20
7C 16 26/0.254 0.76 3.10 0.76 11.09 14.60
8C 28 7/0.127 0.76 2.00 0.76 8.15 239.00
8C 26 7/0.16 0.76 2.10 0.76 8.48 150.00
8C 24 11/0.16 0.76 2.20 0.76 8.81 94.20
8C 22 17/0.16 0.76 2.40 0.76 9.46 59.40
8C 20 21/0.178 0.76 2.50 0.76 9.79 36.70
8C 18 34/0.178 0.76 2.80 0.76 10.77 23.20
9C 28 7/0.127 0.76 2.00 0.76 8.55 239.00
9C 26 7/0.16 0.76 2.10 0.76 8.90 150.00
9C 24 11/0.16 0.76 2.20 0.76 9.24 94.20
9C 22 17/0.16 0.76 2.40 0.76 9.94 59.40
9C 20 21/0.178 0.76 2.50 0.76 10.28 36.70

Manufacturing Process:

UL21782 Electric Equipment Extendable Curly Cable

Tag: UL21782, UL21782 electric equipment cable
