UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
UL21781 Electric Equipment Extendable Curly Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL21781
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
200 pcs per box
Price :
USD 0.111 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Curly Style :
UL21781
Conductor Material :
Pure Copper Wire Strands
Rated Temperature :
90°C
Rated Voltage :
300V
Insulation Material :
Thermoplastic TPU
Jacket Material :
Thermoplastic TPU
Feature :
Extendable, Highly Elastic
Application :
Electric Equipment
Description

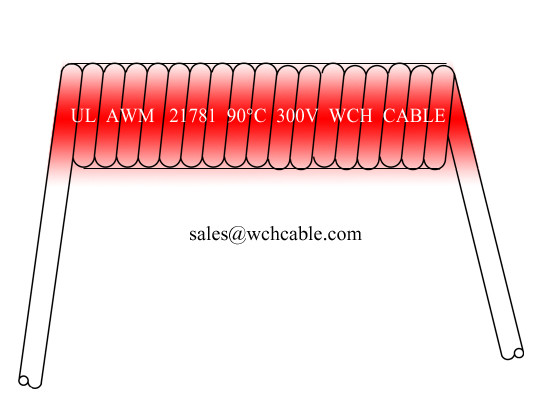

UL21781 Electric Equipment Extendable Curly Cable

Curly cable style: UL21781

Rated: 90°C, 300V.

Insulation Material: Thermoplastic TPU.

Jacket Material: Thermoplastic TPU.

Feature: highly elastic, best for connection under limit space.

Extended Distance: cable diameter x 3.5~4.

Executed Standard: UL1581, UL758.

Application: Electric equipment interconnection.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21781 3C 28 7/0.127 0.23 0.90 0.76 3.96 239.00
3C 26 7/0.16 0.23 1.00 0.76 4.18 150.00
3C 24 11/0.16 0.23 1.10 0.76 4.39 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.82 59.40
3C 20 21/0.178 0.23 1.50 0.76 5.25 36.70
3C 18 34/0.178 0.23 1.70 0.76 5.68 23.20
3C 16 26/0.254 0.23 2.10 0.76 6.55 14.60
4C 28 7/0.127 0.23 0.90 0.76 4.19 239.00
4C 26 7/0.16 0.23 1.00 0.76 4.43 150.00
4C 24 11/0.16 0.23 1.10 0.76 4.68 94.20
4C 22 17/0.16 0.23 1.30 0.76 5.16 59.40
4C 20 21/0.178 0.23 1.50 0.76 5.64 36.70
4C 18 34/0.178 0.23 1.70 0.76 6.12 23.20
4C 16 26/0.254 0.23 2.10 0.76 7.09 14.60
5C 28 7/0.127 0.23 0.90 0.76 4.45 239.00
5C 26 7/0.16 0.23 1.00 0.76 4.72 150.00
5C 24 11/0.16 0.23 1.10 0.76 4.99 94.20
5C 22 17/0.16 0.23 1.30 0.76 5.53 59.40
5C 20 21/0.178 0.23 1.50 0.76 6.07 36.70
5C 18 34/0.178 0.23 1.70 0.76 6.61 23.20
5C 16 26/0.254 0.23 2.10 0.76 7.69 14.60
6C 28 7/0.127 0.23 0.90 0.76 4.72 239.00
6C 26 7/0.16 0.23 1.00 0.76 5.02 150.00
6C 24 11/0.16 0.23 1.10 0.76 5.32 94.20
6C 22 17/0.16 0.23 1.30 0.76 5.92 59.40
6C 20 21/0.178 0.23 1.50 0.76 6.52 36.70
6C 18 34/0.178 0.23 1.70 0.76 7.12 23.20
6C 16 26/0.254 0.23 2.10 0.76 8.32 14.60
7C 28 7/0.127 0.23 0.90 0.76 4.77 239.00
7C 26 7/0.16 0.23 1.00 0.76 5.08 150.00
7C 24 11/0.16 0.23 1.10 0.76 5.38 94.20
7C 22 17/0.16 0.23 1.30 0.76 5.99 59.40
7C 20 21/0.178 0.23 1.50 0.76 6.60 36.70
7C 18 34/0.178 0.23 1.70 0.76 7.21 23.20
7C 16 26/0.254 0.23 2.10 0.76 8.44 14.60
8C 28 7/0.127 0.23 0.90 0.76 4.96 239.00
8C 26 7/0.16 0.23 1.00 0.76 5.29 150.00
8C 24 11/0.16 0.23 1.10 0.76 5.61 94.20
8C 22 17/0.16 0.23 1.30 0.76 6.27 59.40
8C 20 21/0.178 0.23 1.50 0.76 6.92 36.70
8C 18 34/0.178 0.23 1.70 0.76 7.57 23.20
9C 28 7/0.127 0.23 0.90 0.76 5.14 239.00
9C 26 7/0.16 0.23 1.00 0.76 5.49 150.00
9C 24 11/0.16 0.23 1.10 0.76 5.83 94.20
9C 22 17/0.16 0.23 1.30 0.76 6.52 59.40
9C 20 21/0.178 0.23 1.50 0.76 7.22 36.70

UL21781 Electric Equipment Extendable Curly Cable

Tag: UL21781, UL21781 electric equipment cable
