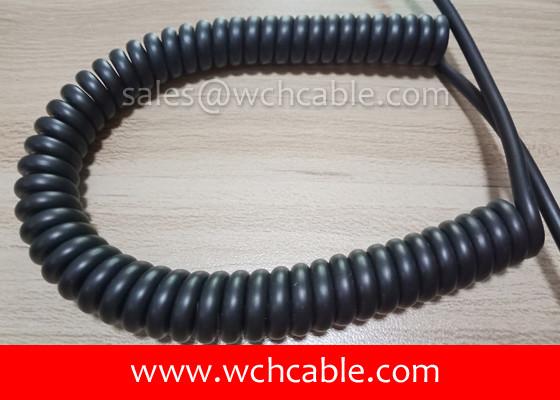

UL20445 Low Voltage Protection Power Control Spiral Cable
UL20445 Low Voltage Protection Power Control Spiral Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20445
Certification :
UL, CUL, AWM
Place of Origin :
Dongguan, China
MOQ :
200pcs
Price :
USD 0.27 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Style Number :
UL20445
Conductor :
Pure coper wire strands
Insulation Material :
AWM Complied Materials
Rated Temperature :
60 Cel Degree
Jacket Material :
Thermoplastic TPU
Rated Voltage :
30V
Conductor Size :
50AWG to 10AWG
Jacket Thickness :
30 Mils minimum
Description

UL20445 Low Voltage Protection Power Control Spiral Cable

Spiral cable style: UL20445;

Conductor material: highly pure copper wire strands;

Insulation material: high quality AWM complied material;

Jacket material: Quality polyurethane PUR.

Outstanding feature:

  • up to -40° cold temperature resistant;
  • 60°C oil compatible;
  • UV sunlight resistant.
Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20445 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20

UL20445 Low Voltage Protection Power Control Spiral Cable

Tag: UL20445, cable, spiral cable
