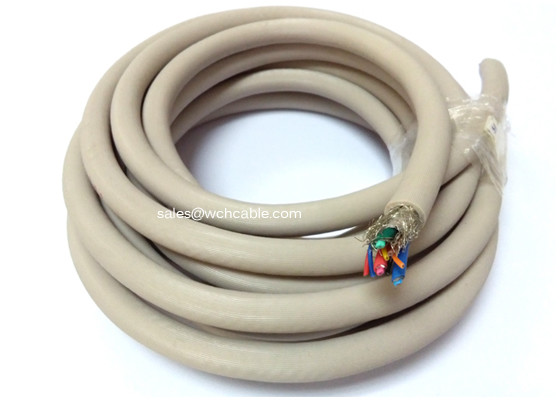

UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
UL Certified Medical Massage Equipment Wired Flexible PUR Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20317
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.145 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
300,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL20317
Application :
Medical Massage Equipment
Rated Voltage :
300V
Conductor :
Extremely High Purity Copper
Rated Temperature :
80C Degrees
Insulation :
Polyurethane PUR
Environmental :
RoHS, Reach Compliant
Jacket :
Polyurethane PUR
Description

UL Certified Medical Massage Equipment Wired Flexible PUR Cable

Approval Style Number: UL20317

Sheath Material: Thermoplastic polyurethane PUR

Flammability Grade: VW-1, FT1, FT2

Uniform insulation wall thickness for smooth stripping of cable assembly.

Style Number Conductor Quantity Conductor Size Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20317 2C 30 7/0.100 0.23 0.80 0.76 3.70 381
2C 28 7/0.127 0.23 0.90 0.76 3.90 239
2C 26 7/0.16 0.23 1.00 0.76 4.20 150
2C 24 11/0.16 0.23 1.10 0.76 4.40 94.2
2C 22 17/0.16 0.23 1.30 0.76 4.70 59.4
2C 20 21/0.178 0.23 1.50 0.76 5.20 36.7
2C 18 34/0.178 0.23 1.80 0.76 5.70 23.2
2C 16 26/0.25 0.23 2.10 0.76 6.30 14.6
3C 30 7/0.100 0.23 0.80 0.76 3.80 381
3C 28 7/0.127 0.23 0.90 0.76 4.00 239
3C 26 7/0.16 0.23 1.00 0.76 4.20 150
3C 24 11/0.16 0.23 1.10 0.76 4.50 94.2
3C 22 17/0.16 0.23 1.30 0.76 5.00 59.4
3C 20 21/0.178 0.23 1.50 0.76 5.40 36.7
3C 18 34/0.178 0.23 1.80 0.76 6.00 23.2
4C 30 7/0.100 0.23 0.80 0.76 4.00 381
4C 28 7/0.127 0.23 0.90 0.76 4.30 239
4C 26 7/0.16 0.23 1.00 0.76 4.50 150
4C 24 11/0.16 0.23 1.10 0.76 4.80 94.2
4C 22 17/0.16 0.23 1.30 0.76 5.30 59.4
4C 20 21/0.178 0.23 1.50 0.76 5.70 36.7
5C 30 7/0.100 0.23 0.80 0.76 4.30 381
5C 28 7/0.127 0.23 0.90 0.76 4.50 239
5C 26 7/0.16 0.23 1.00 0.76 4.80 150
5C 24 11/0.16 0.23 1.10 0.76 5.00 94.2
5C 22 17/0.16 0.23 1.30 0.76 5.60 59.4
6C 30 7/0.100 0.23 0.80 0.76 4.50 381
6C 28 7/0.127 0.23 0.90 0.76 4.80 239
6C 26 7/0.16 0.23 1.00 0.76 5.20 150
6C 24 11/0.16 0.23 1.10 0.76 5.50 94.2

UL Certified Medical Massage Equipment Wired Flexible PUR Cable

Tag: medical cable, pur cable, curl cord
