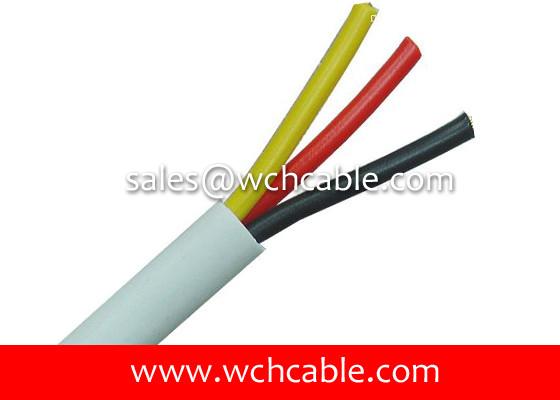

Patient Handling PUR Cable UL AWM Style 21060, Rated 80C 600V, Cable Flame
Patient Handling PUR Cable UL AWM Style 21060, Rated 80C 600V, Cable Flame
Specifications
Brand Name :
WCH Cable
Model Number :
21060
Certification :
UL, CUL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.135 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
300,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
UL Style Number :
21060
Sheath Material :
Polyurethane PUR
Rated Voltage :
600V
Rated Temperature :
80C Degrees
Application :
Patient handling
Manufacturer :
WCH Cable Industrial Co., Ltd.
Description

Patient Handling PUR Cable UL AWM Style 21060, Rated 80C 600V, Cable Flame

Conductor material: high purity copper wires

Conductor size: 32AWG to 4/0AWG, solid or stranded, optional.

Insulation material: AWM complying materials.

Jacket material: Polyurethane PUR.

Parameters:

UL Style Number Conductor Quantity Conductor Structure Insulation
Thickness		 Insulation Diameter Screen Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
21060 2C 30 7/0.100 0.23 0.80 ≥65 1.15 3.90 381.00
2C 28 7/0.127 0.23 0.90 ≥65 1.15 4.10 239.00
2C 26 7/0.16 0.23 1.00 ≥65 1.15 4.30 150.00
2C 24 11/0.16 0.23 1.10 ≥65 1.15 4.50 94.20
2C 22 17/0.16 0.23 1.30 ≥65 1.15 4.90 59.40
2C 20 21/0.178 0.23 1.50 ≥65 1.15 5.30 36.70
2C 18 34/0.178 0.23 1.80 ≥65 1.15 5.90 23.20
2C 16 26/0.25 0.23 2.10 ≥65 1.15 6.50 14.60
3C 30 7/0.100 0.23 0.80 ≥65 1.15 4.10 381.00
3C 28 7/0.127 0.23 0.90 ≥65 1.15 4.20 239.00
3C 26 7/0.16 0.23 1.00 ≥65 1.15 4.50 150.00
3C 24 11/0.16 0.23 1.10 ≥65 1.15 4.70 94.20
3C 22 17/0.16 0.23 1.30 ≥65 1.15 5.10 59.40
3C 20 21/0.178 0.23 1.50 ≥65 1.15 5.50 36.70
3C 18 34/0.178 0.23 1.80 ≥65 1.15 6.30 23.20
4C 30 7/0.100 0.23 0.80 ≥65 1.15 5.50 381.00
4C 28 7/0.127 0.23 0.90 ≥65 1.15 5.80 239.00
4C 26 7/0.16 0.23 1.00 ≥65 1.15 6.00 150.00
4C 24 11/0.16 0.23 1.10 ≥65 1.15 6.20 94.20
4C 22 17/0.16 0.23 1.30 ≥65 1.15 6.70 59.40
4C 20 21/0.178 0.23 1.50 ≥65 1.15 7.20 36.70
5C 30 7/0.100 0.23 0.80 ≥65 1.15 5.70 381.00
5C 28 7/0.127 0.23 0.90 ≥65 1.15 6.00 239.00
5C 26 7/0.16 0.23 1.00 ≥65 1.15 6.40 150.00
5C 24 11/0.16 0.23 1.10 ≥65 1.15 6.50 94.20
5C 22 17/0.16 0.23 1.30 ≥65 1.15 7.10 59.40
6C 30 7/0.100 0.23 0.80 ≥65 1.15 6.00 381.00
6C 28 7/0.127 0.23 0.90 ≥65 1.15 6.40 239.00
6C 26 7/0.16 0.23 1.00 ≥65 1.15 6.60 150.00
6C 24 11/0.16 0.23 1.10 ≥65 1.15 6.90 94.20

Patient Handling PUR Cable UL AWM Style 21060, Rated 80C 600V, Cable Flame

UL Style Number: 21060
Rated Grade:

80 deg C, 600 Vac, Cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 45 mils (Ref.)
Minimum thickness: 36 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal Wiring and Interconnection of Assigned Equipments.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, Cable, 21060 Cable

Patient Handling PUR Cable UL AWM Style 21060, Rated 80C 600V, Cable Flame

History since 1997

WCH Cable has been engaged in the cable manufacture & supply since 1997. With so many years experience, it possesses the outstanding advantages among so many cable & wire manufacture factories. There are strict rules that all the company staff have been adhereing to.

RoHS Compliant 100%

WCH Cable manufacturing lines implement ISO9001:2008 Quality approval management. Most importantly, to assure of environment-friendly production, WCH Cable proudly announces the whole factory wins the Hazardous substance management approval QC080000. All Cables and Wires provided by WCH Cable are hazardous substance free. WCH Cable Guarantees all products 100% complies with RoHS directive.

High purity copper conductors 99.997%

WCH Cable guarantees the good quality. WCH Cable production lines manufacture cables and wires with oxygen-free pure copper conductors only, of which the purity is up to 99.997%. Higher copper conductor purity makes the cables and wires with perfect electrical conductivity, wonderful processing performance, good corrosion resistance and so on.
