UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC
Specifications
Brand Name :
WCH Cable
Model Number :
UL2844
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.10 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000,000 meters per week
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Style Number :
UL2844
Conductor Material :
Highly pure copper wire
Rated Temperature :
60°C
Insulation Material :
FR-PE
Rated Voltage :
30V
Sheath Material :
Polyvinyl Chloride PVC
Application :
Industries control wiring
Description

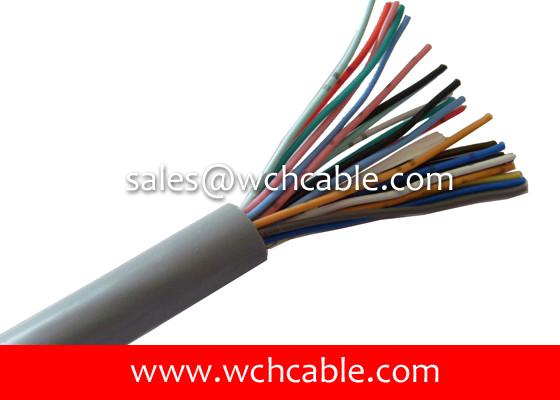

UL PVC Cable, AWM Style UL2844 32AWG 25C FT2 60°C 30V, FR-PE / PVC

Conductor size: 32AWG

Wire assembly: 25 cores.

Insulation color: Black, brown, red, blue, pink, violet, white, green, yellow, grey, orange, etc.

Insulation material: FR-PE.

Shield: no shield.

Sheath color: Grey.

Sheath material: PVC

Sheath thickness: 0.22mm

Flammability: FT2.

Rated temperature: 60/80°C

Rated voltage: 30V

Conductor resistance: 602Ω/km

Insulation resistance: 100mΩ/km

Recommended application: industries control wiring.

Applied standard: UL758, UL1581.

Remark: color of wires or sheath can be changed according to customer's requirement.
