UL PVC Cable, AWM Style UL2655 14AWG 5C VW-1 80°C 300V, PP / PVC
UL PVC Cable, AWM Style UL2655 14AWG 5C VW-1 80°C 300V, PP / PVC
Specifications
Brand Name :
WCH Cable
Model Number :
UL2655
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.10 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000,000 meters per week
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Style Number :
UL2655
Conductor Material :
Highly pure copper wire
Rated Temperature :
80°C
Insulation Material :
Polypropylene PP
Rated Voltage :
300V
Sheath Material :
Polyvinyl Chloride PVC
Application :
Computer data transfer
Description

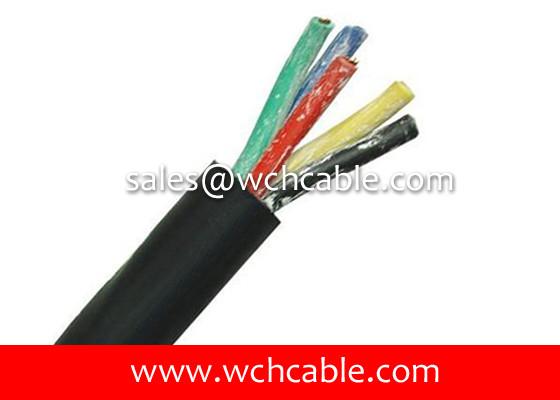

UL PVC Cable, AWM Style UL2655 14AWG 5C VW-1 80°C 300V, PP / PVC

Conductor size: 14AWG

Wire assembly: 5 cores

Insulation color: Blue, green, red, yellow, black.

Insulation material: PP.

Shield: no shield.

Sheath color: Black.

Sheath material: PVC

Sheath thickness: 0.76mm

Flammability: VW-1

Rated temperature: 80°C

Rated voltage: 300V

Conductor resistance: 9.42Ω/km

Insulation resistance: 100mΩ/km

Recommended application: computer data transfer.

Applied standard: UL758, UL1581.

Remark: color of wires or sheath can be changed according to customer's requirement.
