UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
Specifications
Brand Name :
WCH Cable
Model Number :
UL2725
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.10 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000,000 meters per week
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
Style Number :
UL2725
Conductor Material :
Highly pure copper wire
Rated Temperature :
80°C
Insulation Material :
SR-PVC
Rated Voltage :
30V
Sheath Material :
Polyvinyl Chloride PVC
Application :
Computer data transfer
Description

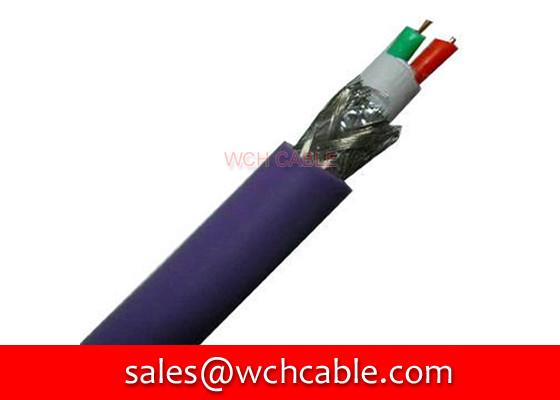

UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC

Conductor size: 20AWG

Wire assembly: 2 cores, twisted pair.

Insulation color: Green, red.

Insulation material: SR-PVC.

Shield: copper braided shield with mylar.

Sheath color: Violet.

Sheath material: PVC

Sheath thickness: 0.23mm

Flammability: VW-1

Rated temperature: 60/80°C

Rated voltage: 30V

Conductor resistance: 40.1Ω/km

Insulation resistance: 10mΩ/km

Recommended application: computer data transfer.

Applied standard: UL758, UL1581.

Remark: color of wires or sheath can be changed according to customer's requirement.

UL PVC Cable, AWM Style UL2725 20AWG 2C (1Pair) VW-1 80°C 30V, SR-PVC / PVC
