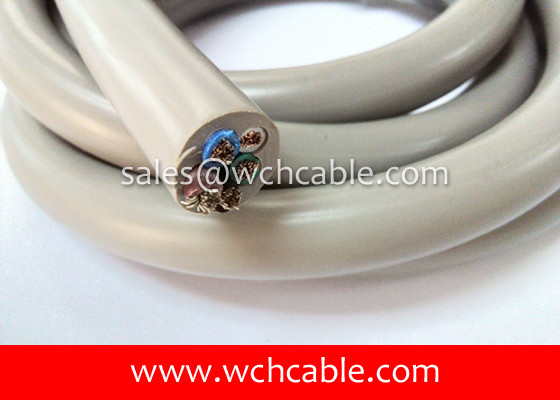

UL21326 South China Machinery Customized TPU Cable 60C 1000V
UL21326 South China Machinery Customized TPU Cable 60C 1000V
Specifications
Brand Name :
WCH Cable
Model Number :
UL21326
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.130 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
3,000,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL21326
Conductor Material :
Highly Pure Copper Wires
Rated Temperature :
60°C
Insulation Material :
AWM Complied Material
Rated Voltage :
1000V
Jacket Material :
Thermoplastic TPU
Cores Assembly :
Pairs or Groups twisted
Jacket Thickness :
15 mils Minimum
Description

UL21326 South China Machinery Customized TPU Cable 60C 1000V

WCH Cable guarantees the good quality. WCH Cable production lines manufacture cables and wires with oxygen-free pure copper conductors only, of which the purity is up to 99.997%. Higher copper conductor purity makes the cables and wires with perfect electrical conductivity, wonderful processing performance, good corrosion resistance and so on.

TPU cable style number: UL21326

Rated: 60°C, 1000V

Sheath material: quality polyurethane PUR

Application: machinery connection.

Style Number Core Quantity Conductor Gauge Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21326 2C 30 7/0.100 0.76 1.90 0.38 5.80 381.00
2C 28 7/0.127 0.76 2.00 0.38 6.10 239.00
2C 26 7/0.16 0.76 2.10 0.38 6.20 150.00
2C 24 11/0.16 0.76 2.20 0.38 6.40 94.20
2C 22 17/0.16 0.76 2.40 0.38 6.80 59.40
2C 20 21/0.178 0.76 2.50 0.38 7.20 36.70
2C 18 34/0.178 0.76 2.80 0.38 7.80 23.20
2C 16 26/0.25 0.76 3.10 0.38 10.00 14.60
3C 30 7/0.100 0.76 1.90 0.38 7.70 381.00
3C 28 7/0.127 0.76 2.00 0.38 7.90 239.00
3C 26 7/0.16 0.76 2.10 0.38 8.10 150.00
3C 24 11/0.16 0.76 2.20 0.38 8.30 94.20
3C 22 17/0.16 0.76 2.40 0.38 8.70 59.40
3C 20 21/0.178 0.76 2.50 0.38 9.20 36.70
3C 18 34/0.178 0.76 2.80 0.38 9.80 23.20
4C 30 7/0.100 0.76 1.90 0.38 7.90 381.00
4C 28 7/0.127 0.76 2.00 0.38 8.10 239.00
4C 26 7/0.16 0.76 2.10 0.38 8.40 150.00
4C 24 11/0.16 0.76 2.20 0.38 8.70 94.20
4C 22 17/0.16 0.76 2.40 0.38 9.10 59.40
4C 20 21/0.178 0.76 2.50 0.38 9.70 36.70
5C 30 7/0.100 0.76 1.90 0.38 8.20 381.00
5C 28 7/0.127 0.76 2.00 0.38 8.50 239.00
5C 26 7/0.16 0.76 2.10 0.38 8.60 150.00
5C 24 11/0.16 0.76 2.20 0.38 9.00 94.20
5C 22 17/0.16 0.76 2.40 0.38 9.60 59.40
6C 30 7/0.100 0.76 1.90 0.38 8.60 381.00
6C 28 7/0.127 0.76 2.00 0.38 8.90 239.00
6C 26 7/0.16 0.76 2.10 0.38 9.20 150.00
6C 24 11/0.16 0.76 2.20 0.38 9.50 94.20

UL21326 South China Machinery Customized TPU Cable 60C 1000V

Tag: UL21326, cable, tpu cable
