UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V
UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V
UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V
UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V
Specifications
Brand Name :
WCH Cable
Model Number :
UL21765
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200pcs
Price :
USD 0.25 per piece
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
100,000 pieces per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton box
Style Number :
UL21765
Conductor Material :
Highly Pure Copper Wire Strands
Rated Temperature :
105°C
Insulation Material :
AWM Complying Material
Rated Voltage :
300V
Jacket Material :
Thermoplastic TPU
Feature :
Easy Movement Flexible
Jacket Thickness :
30mils Minimum
Description

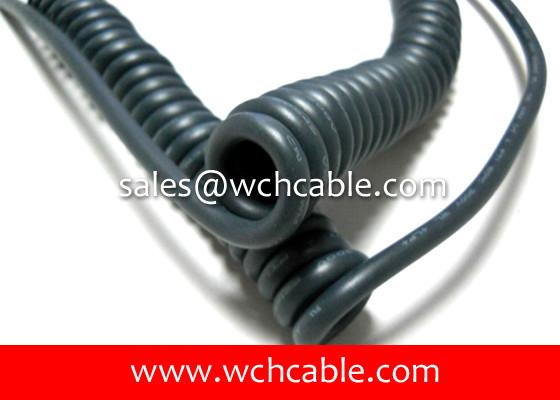

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

WCH Cable company is working hard to develop good quality curly cable for customers. Its 105C TPU coated curly cable is the excellent example, highly resilient, quality stable, and spec can be tailor made per customer's requirement. Come and contact the customer service to work out the best article overal the world.

Feature: highly resilient, quality stable.

Approval style: UL21765.

Extendable length: cable diameter x 4.

Spiral dimension: to be tailor made per requirement.

Style Number Conductor Quantity Conductor Strands Size Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21765 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

Style Number: UL21765
Rated Grade: 105 deg C, 300 Vac, cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Aluminum Foil, Clear Mylar, Braided Copper, Optional
Jacket: Extruded Polyurethane TPU
Average thickness: 30 mils (Ref.)
Minimum thickness: 24 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: External interconnection of electronic equipment and appliances.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, TPU Cable, Movement Cable, Curly Cable, UL21765 Cable

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

Tag: UL21765, cable, curly cable
