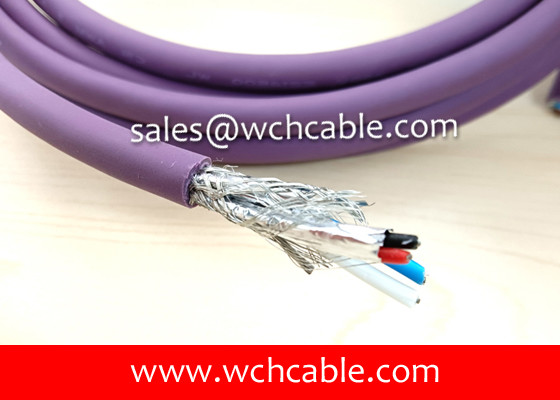

UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
UL20417 PUR Sheathed Hospitality System Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20417
Certification :
UL, CUL, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.142 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
300,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style number :
UL20417
Application :
Hospitality System Wiring
Conductor :
Extremely Pure Copper Strands
Feature :
UV Resistant
Sheath Material :
Polyurethane PUR
Rated Voltage :
30V
Rated Temperature :
60C Degrees
Sheath Thickness :
0.76mm
Description

UL20417 PUR Sheathed Hospitality System Cable

Style number: uL20417

Rated temperature: 60°C

Rated voltage: 30V (low voltage)

Conductor: pure copper wires

Insulation: AWM compliant materials

Softness: flexible, easy bending

Application: hospitality system interconnection.

Uniform thickness for smooth stripping process of assembly.

Style Number Conductor Quantity Conductor Size Insulation
Thickness		 Insulation Diameter Screen Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20417 2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 ≥65 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 ≥65 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 ≥65 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.10 ≥65 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 ≥65 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 ≥65 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 ≥65 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 ≥65 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 ≥65 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 ≥65 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 ≥65 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 ≥65 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 ≥65 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 ≥65 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 ≥65 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 ≥65 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 ≥65 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 ≥65 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 ≥65 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 ≥65 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 ≥65 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 ≥65 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 ≥65 0.76 6.20 94.20
