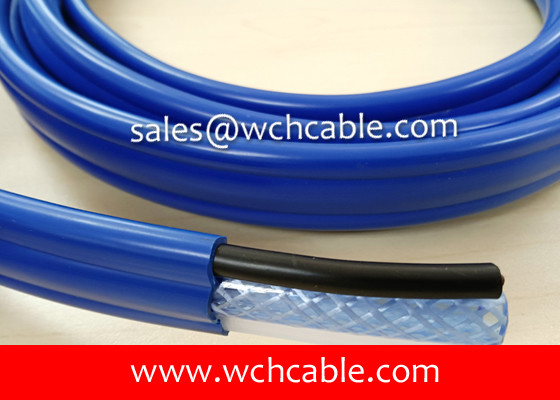

UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
UL20152 PUR Sheath Medical Equipment Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20152
Certification :
UL, CUL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.126 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
300,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL20152
Feature :
Heat Resistant
Rated Voltage :
120 Vac, 240 Vac, 300 Vac Optional
Conductor :
Pure Copper Wire Strands
Rated Temperature :
90°C
Insulation :
AWM compliant materials
Shield :
Optional
Sheath :
Polyurethane PUR
Description

UL20152 PUR Sheath Medical Equipment Cable

Style number: UL20152

Rated temperature: 90°C

Rated voltage: 240V.

Conductor material: high purity copper wires

Conductor: 20AWG to 14AWG stranded copper wires x 2C or 3C

Application: medical equipment connection.

Jacket material: Polyurethane PUR.

Parameters:

Style Number Conductor Quantity Conductor Structure Insulation Thickness Insulation Diameter Shield Coverage Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20152 2C 20 21/0.178 0.33 1.70 ≥65 0.51 5.90 36.70
2C 18 34/0.178 0.33 2.00 ≥65 0.51 6.40 23.20
2C 16 26/0.25 0.33 2.20 ≥65 0.51 7.00 14.60
2C 14 41/0.25 0.33 2.50 ≥65 0.51 7.80 8.96
3C 20 21/0.178 0.33 2.00 ≥65 0.51 6.20 36.70
3C 18 34/0.178 0.33 2.20 ≥65 0.51 6.80 23.20
3C 16 26/0.25 0.33 2.50 ≥65 0.51 7.40 14.60
3C 14 41/0.25 0.33 2.90 ≥65 0.51 8.40 8.96

Related: medical cable, pur cable, curl cord

UL20152 PUR Sheath Medical Equipment Cable

UL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment Cable

UL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment Cable

UL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment Cable

UL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment CableUL20152 PUR Sheath Medical Equipment Cable

Tag: ul20152, medical, equipment, pur cable
