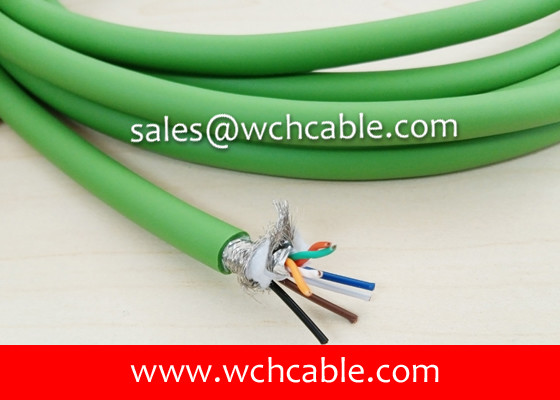

UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
UL20410 PUR Sheathed Motion Sensor Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20410
Certification :
UL, CUL, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.141 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
3000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL20410
Application :
Motion Sensor Wiring
Rated Temperature :
60°C
Conductor :
Extremely High Purity Copper Strands
Rated Voltage :
300V
Insulation :
PP, TPE, XLPE, FRPE, PUR, TPU
Shield :
Optional
Jacket :
Polyurethane PUR
Description

UL20410 PUR Sheathed Motion Sensor Cable

Style number: UL20410

Rated temperature: 60°C

Rated voltage: 300V

Conductor: AWM complying materials.

Assembly: 2 or more conductors cabled together.

Screen Shield: braid shield, spiral wrap, optional.

Sheath material: pur polyurethane.

Eco Status: RoHS & Reach compliant.

Style Number Conductor Quantity Conductor Structure Insulation
Thickness		 Insulation Diameter Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20410 2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 ≥65 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 ≥65 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 ≥65 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.10 ≥65 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 ≥65 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 ≥65 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 ≥65 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 ≥65 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 ≥65 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 ≥65 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 ≥65 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 ≥65 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 ≥65 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 ≥65 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 ≥65 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 ≥65 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 ≥65 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 ≥65 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 ≥65 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 ≥65 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 ≥65 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 ≥65 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 ≥65 0.76 6.20 94.20
