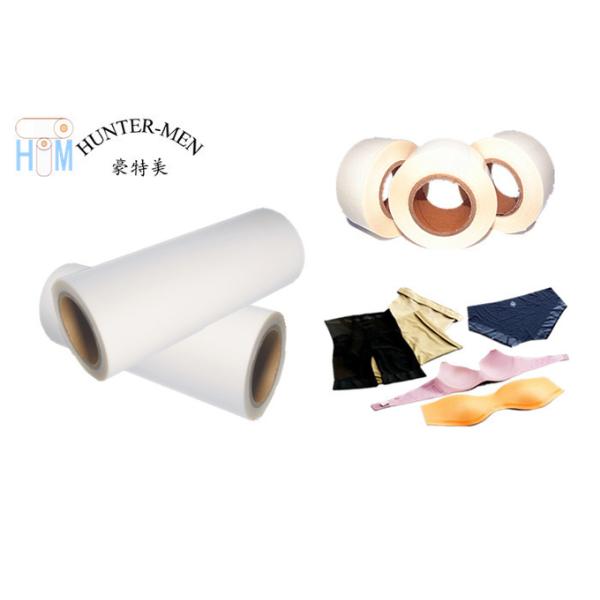

TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
Specifications
Brand Name :
Hunter Men
Model Number :
HT07-40P
Certification :
ROHS,REACH, ISO9001:2015
Place of Origin :
Shenzhen,China
MOQ :
5000 ㎡
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal
Supply Ability :
30000 ㎡ per day
Delivery Time :
3-15 work days (depends on the order quantity)
Packaging Details :
100meters/Roll and PE bag package,1 rolls in Carton (can be customized)
Main raw material :
100% thermoplastic polyurethane
Feature :
Springback No Deformation
Melt Flow Index: :
35±5g/10min (Condition:190℃,2.16Kg)
Melt Point :
120℃
Work Temperature :
170-190℃
Width :
1500mm (can be customized)
Length :
100 Meters per Roll (can be customized)
Usage :
Traceless Thermal Bonding Elasticity Underwear Fabrics
Description

TPU Hotmelt Stickness Roll for Traceless Thermal Bonding Elasticity Underwear Fabrics
Model Number:HT07-40P
Description:
HT07-40P is thermoplastic material, suitable for a variety of materials, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for Fabrics,Diving Fabrics,Laica,Jersey, other elastic fabrics and so on. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Operate machine:iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:

Color Transparent Release Liner Double Silicone Glassine Release paper
Density 1.2±0.02g/cm³ Conventional thickness 30mic,50mic,80mic,100mic (can be customized)
Melt Flow Index 35±5g/10min
 Conventional Width 1500mm (can be customized)
Hardness (Shore A) 60A Length 100meters(can be customized)
Flow Beginning Point 120℃ Normal Size /Rolls

1535mm(width)*100meters(Length) (can be customized)

Recommended Bonding Conditions:

First Backing Operate Second Hot Pressure Operate
Backing Temperature 130℃-150℃ Hot Pressure Temperature 150℃-190℃
Hot Pressing Speed 20m/min Hot Pressure Speed 15m/min
Pressure 0.5-1.5KG/CM² Pressure 0.5-1.5KG/CM²

Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)

Storage Conditions:
Stored in dry unopened packaging at room temperature at least 2 years.

TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics

Features&Usages:
It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.

TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
How to use it:
TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics

FAQ:

Q1) . How about your MOQ of your hot melt Adhesive Film?

A:Our PO,EVA, TPU, PES ,PA hot melt adhesive film , MOQ is 100yards.

Q2). What is your normal width ?

A:Our normal width are 48cm, 50cm, 96cm,100cm,150cm and so on.

Q3). Do you provide free sample? And how many days it will take?

A:Yes, we provide free 1-2yards sample, only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation,

Q4). What is your lead time ?

A:3-5 days , depending on the quantity , we almost have safe stock .

Q5). How do I pay for my order?

A:We accept T/T ,Western Union , Paypal .
