Specifications
Brand Name :
Hunter Men
Model Number :
HT07
Certification :
SGS,Reach, RoHS,ISO9001
Place of Origin :
Shenzhen
MOQ :
153cm*100 meters
Price :
Negotiable
Payment Terms :
Western Union, T/T, D/A, D/P,Alibaba,Paypal
Supply Ability :
300rolls per day
Delivery Time :
1-15 work days
Packaging Details :
100meters/Roll and PE bag package,1 rolls in Carton
Raw Material :
Polyurethane(TPU)
Color :
Transparent
Thickness(mic) :
50mic
Width(mm) :
5.8cm
Length(Yards) :
100meters/Roll
Proportion :
1.2g/cm³
Description

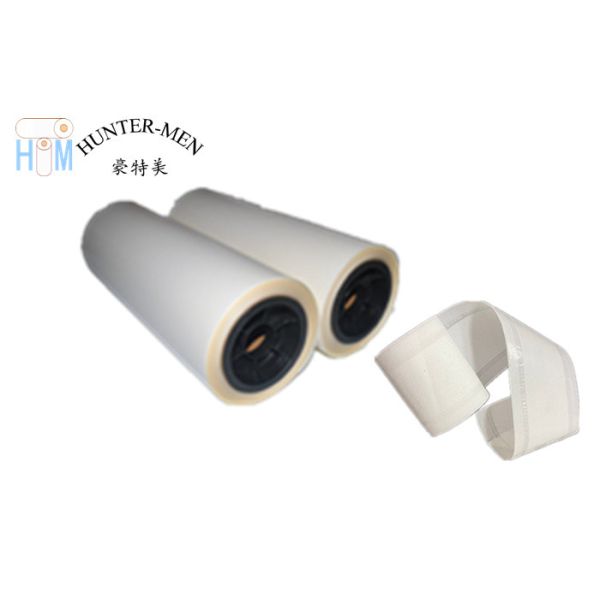

High Elasticity TPU Hot Melt Adhesive Film used to Composite Elastic Fabrics for Trouser Head

Description:

It is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. textile, polyester, cotton, blended fabric, elastic fabrics,carbon fiber fabrics,TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant.

Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

Physical Characteristics:

Color Transparent Release Liner Release paper
Density 1.2g/cm³ Conventional thickness 50mic
Melt Flow Index(Condition:ASTMD1238-04)

20g/10min

Conventional Width 153cm
Hardness (Shore A) 73±2A Length 100meters
Melt Point 120℃ Normal Size /Rolls

153cm(width)*100meters(Length) or as your demands

Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products

Conventional Specification:

0.03MM*153CM*100meters
0.05MM*153CM*100meters

0.08MM*153CM*100meters

0.10MM*153CM*100meters

Applications:

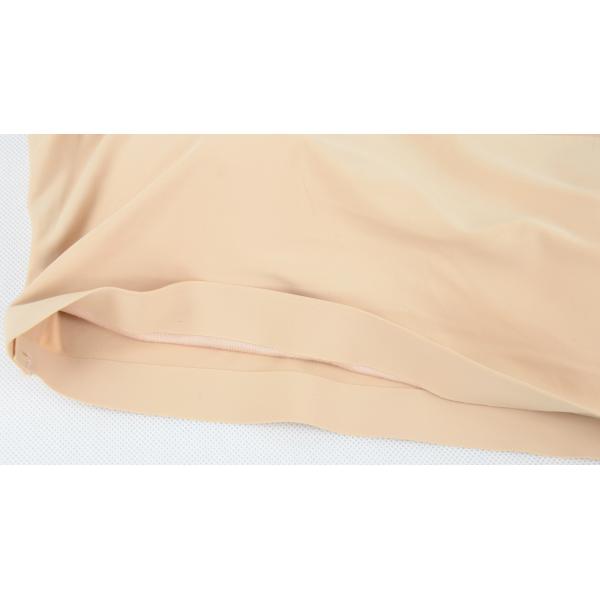

It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

How to Use:

Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.


Two Layers :

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

Three Layers :

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

Packaging Details:

Packaging 1PC/PE FILM, 100meters/roll, 1 rolls/CTN, or it's up on the customer's option
Storage Conditions Stored in dry unopened packaging at room temperature at least 2 years.

Delivery Detail:

Shipped in 3-15 days after payment

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

Support Customization Production:

We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.

1. According to the Film Performance:

Melt Point: 70-110℃,

Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),

Thickness:0.05mm-1mm,

Width: 5mm-1500mm,

Length:1M-1000M/roll,

Colors:All of colors

2.According to the base material:

A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.

3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)

A.Conventional Aperture:1.4mm,1.5mm,1.8mm

B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm

50mic TPU Hot Melt Adhesive Film 100M/ Roll High Elasticity

We can tailor hot melt film as your business and demands.

Why choose us:

1.We are a professional manufacturer of hot melt adhesive film over 10 years of industry experience.
2.Competitiveness :Have an independent R&D center and technical team,have advanced production equipment, and strict quality control.
3. Our Wish: Provide the highest quality products, provide professional customer service, and delivery quickly at the competitive price for all client.

FAQ:

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
