285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
Specifications
Brand Name :
SY
Model Number :
SY-MF-12,13
Place of Origin :
China
MOQ :
5
Price :
USD 101-115 set,USD 220-243
Payment Terms :
T/T, L/C
Supply Ability :
60 set per day
Delivery Time :
5 days
Packaging Details :
paper carton
color :
silver
spline :
25
hub :
Φ39*41
Overall diameter :
310mm,325mm
weight :
32kg,36Kg
OEM no. :
3701015M91,3599542M91
fitment :
Massey ferguson
friction :
cerametallic
Thickness :
9
Pad :
5
Description

made in China spare part for Massey ferguson tractor 285 385 spline 25 pad 5 level 3 hub 39*41 with pto disc

One of our most popular product in oversea market

The abilities of one of the top 5 manufacturer in China
Skillful worker and long experience in this field for presenting the cost-effecient and qualitified product
In North and Middle America,South-east Asia,We have set the footprint
Excellent facilities of tractor industry and transportation position

285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch

Fit Massey ferguson tractor:270,280,285

A tractor which you want to walk through smoothly, so you need an excellent and stable transmission system inclucde the clutch,bearing and shaft,that is also what we work hard to deliver,a reliable matchful clutch can enchance the power of the work and make it easier and comfortable

Well matching the transimssion system of Massey ferguson
The cerametallic pad has better resistence character
Damping spring to reduce the impact of engaging
Double action for operating the walking and working system
Reliable and long cooperation supplier ensure the final assembly and nice price

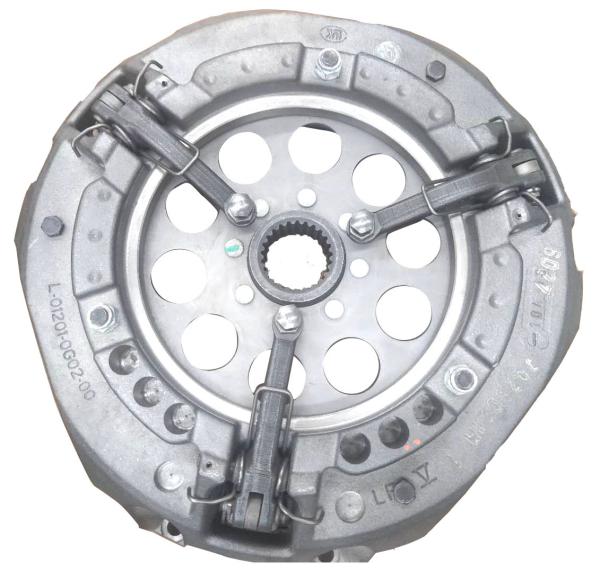

Clutch 12"
OEM no 3599642M91
Size 32*32*12
Weight 33Kg
Level 3
Spline 25

The clutch disc fit for the assembly

285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch

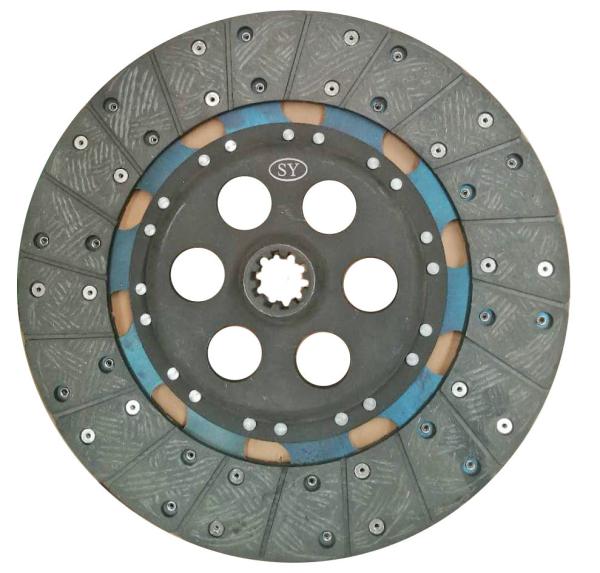

Clutch disc PTO 12"
OEM no. 3599463M91
O.D 310mm
Weight 1Kg
Hub Ф23*27
Spline 10
Friction material Cerametallic
No. of Pad
Thickness 9.5

285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch
Fit Massey ferguson tractor:370,380,385

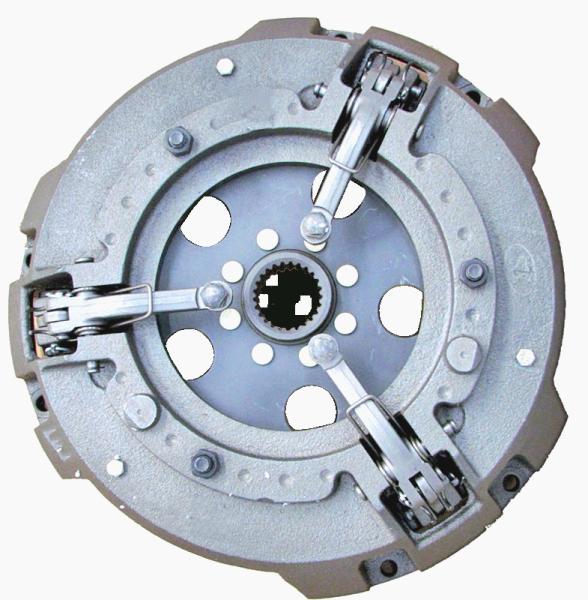

Clutch 13"
OEM no 3701015M91
Size 34*34*13
Weight 35Kg
Level 3
Spline 25

The clutch disc fit for the assembly

285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch

Clutch disc PTO 13"
OEM no. 3701015M91
O.D 325mm
Weight 2.2Kg
Hub Ф25*29
Spline 21
Friction material Cerametallic
No. of Pad 5
Thickness 9.5

Where is this product popular?

In South-east Asia,Africa and some parts of Europe,you can find this
Are there any others product also popular?

Some others product for Foton 504

285 385 25 Spline 3 Level Tractor Spare Parts Massey Ferguson Tractor Clutch

Clutch 10"
OEM no TB550.211A
Size 28*28*11
Weight 23Kg
Level 6
Spline 18
