12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
Specifications
Brand Name :
SY
Model Number :
SY-FT-12
Place of Origin :
China
MOQ :
5
Price :
USD 134-148 set
Payment Terms :
T/T, L/C
Supply Ability :
60 set per day
Delivery Time :
5 days
Packaging Details :
paper carton
color :
silver
spline :
10
hub :
Φ39*45
Overall diameter :
310mm
weight :
36kg
OEM no. :
TA750.211A
fitment :
Foton lovol
friction :
cerametallic
Thickness :
9
Description

popular tractor clutch assembly replacement foton tractor 704 754 12" spline 10 pad 8 level 6 hub 39*44

One of our most popular product in oversea market

The abilities of one of the top 5 manufacturer in China
Skillful worker and long experience in this field for presenting the cost-effecient and qualitified product
In North and Middle America,South-east Asia,We have set the footprint
Excellent facilities of tractor industry and transportation position

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

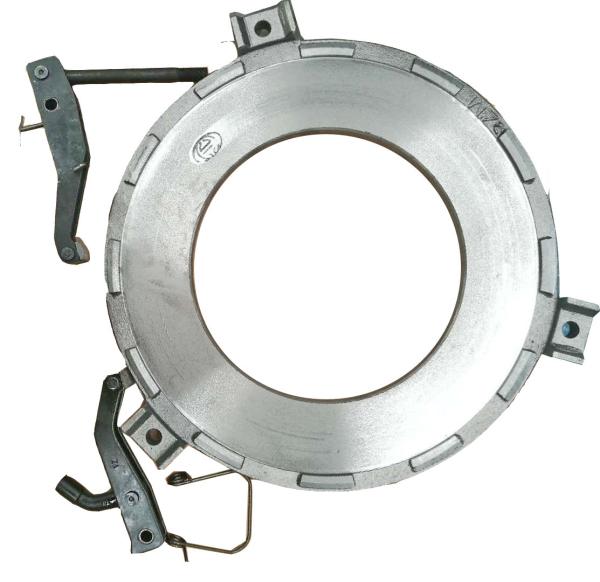

Clutch 12"
OEM no TA750.211
Size 35*35*14
Weight 36Kg
Level 6
Spline 10

The clutch disc fit for the assembly

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

Clutch disc 12"
OEM no. TA750.211.300T
O.D 310mm
Weight 1.7Kg
Hub Ф40*45
Spline 16
Friction material Cerametallic
No. of Pad 8
Thickness 9.5
Clutch disc PTO 12"
OEM no. TA750.211A.200
O.D 310mm
Weight 1.7Kg
Hub Ф40*45
Spline 16
Friction material Cerametallic
No. of Pad 8
Thickness 9.5

The diaphragm

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
​6: Housing 7: Clutch disc 8: plate 12 : Belleville washer 14: Plate 15: Disc PTO

Other choice for clutch disc PTO :

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
Clutch disc 12"
OEM no.
O.D 310mm
Weight 1.2Kg
Hub Ф24*28
Spline 10
Friction material Organic/Cerametallic
No. of Pad
Thickness 9

Related part
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6 12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6 12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

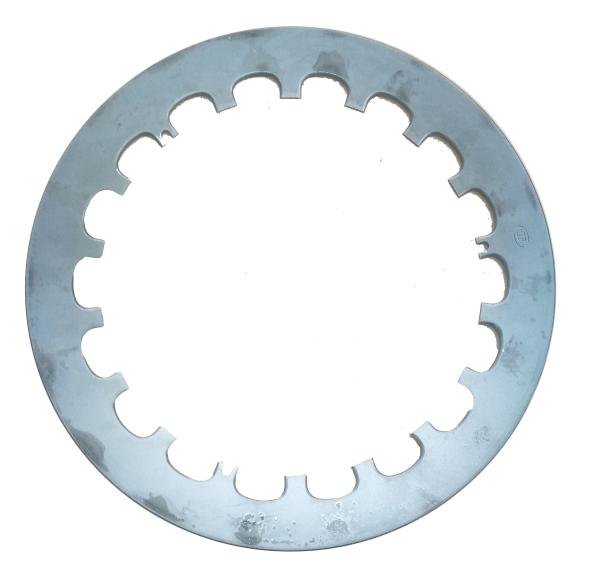

Plate

OEM : HH100-103

Plate

OEM: TA750.102

Belleville washer

OEM: TA750.104

Where is this product popular?

In South-east Asia,Africa and some parts of Europe,you can find this
Are there any others product also popular?

Some others product for Foton 504

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

Clutch 10"
OEM no TB550.211A
Size 28*28*11
Weight 23Kg
Level 6
Spline 18

Do you have any products for other brand?

John deere,New holland,Massy ferguson,YTO,Kubota,Fiat,Ford,Case IH are also in our product catalogue
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6 12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

John deere 11"

OEM: RE211277

John deere 12"

OEM: YZ91038
12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6 12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6

New holland 11"

OEM: 5150642

New holland 14"

OEM: 82983564

Besides clutch do you have any other products for the tractors?

The brake is also in our supplying catalogue

12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6 12'' Tractor Clutch Assembly Replacement Spline 10 Pad 8 Level 6
OEM no MG804-1-43A
OD.: 240mm
Weight 0.8
Hub Ф51*57
Spline 18
Thickness 5.2
Friction material
OEM no HZJ413
OD: 210mm
Weight 0.6
Hub Ф39*44
Spline 16
Thickness 5
Friction material

Where is your company?

In Luoyang,the tractor capital of China,owning the facilities of transportation and the industrial enviroment

How is the aftersale service?

Usually,the product have 6 month warranty except the disc burning

How is the logistics and package?

As common,the goods will be packed in paper carton,we can deliver the cargo through air,sea and train
