10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
Specifications
Brand Name :
SY
Model Number :
SY-FT-12
Place of Origin :
China
MOQ :
5
Price :
USD 134-148 set
Payment Terms :
T/T, L/C
Supply Ability :
60 set per day
Delivery Time :
5 days
Packaging Details :
paper carton
color :
silver
spline :
10
hub :
Φ39*45
Overall diameter :
310mm
weight :
36kg
OEM no. :
TA750.211A
fitment :
Foton lovol
friction :
cerametallic
Thickness :
9
Description

made in China spare part TA750.211 for foton tractor 704 754 12" spline 10 pad 8 level 6 hub 39*44 with pto disc

One of our most popular product in oversea market

The abilities of one of the top 5 manufacturer in China
Skillful worker and long experience in this field for presenting the cost-effecient and qualitified product
In North and Middle America,South-east Asia,We have set the footprint

Excellent facilities of tractor industry and transportation position
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

A tractor which you want to walk through smoothly, so you need an excellent and stable transmission system inclucde the clutch,bearing and shaft,that is also what we work hard to deliver,a reliable matchful clutch can enchance the power of the work and make it easier and comfortable

Well matching the transimssion system of John deere
The cerametallic pad has better resistence character
Damping spring to reduce the impact of engaging
Double action for operating the walking and working system
Reliable and long cooperation supplier ensure the final assembly and nice price

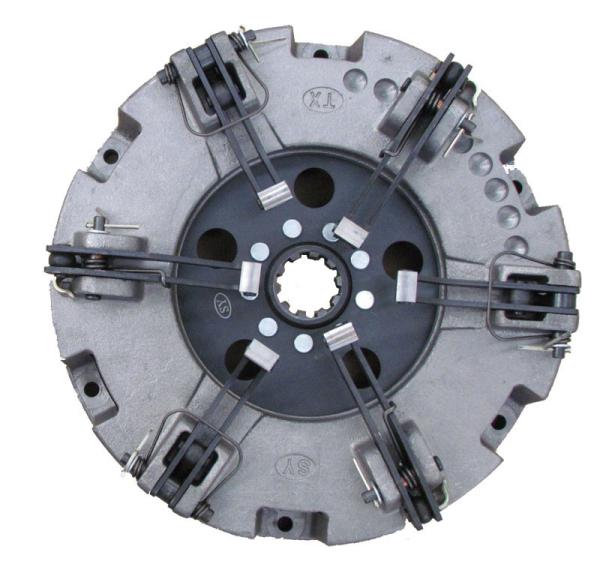

Clutch 12"
OEM no TA750.211
Size 35*35*14
Weight 36Kg
Level 6
Spline 10

The clutch disc fit for the assembly

10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

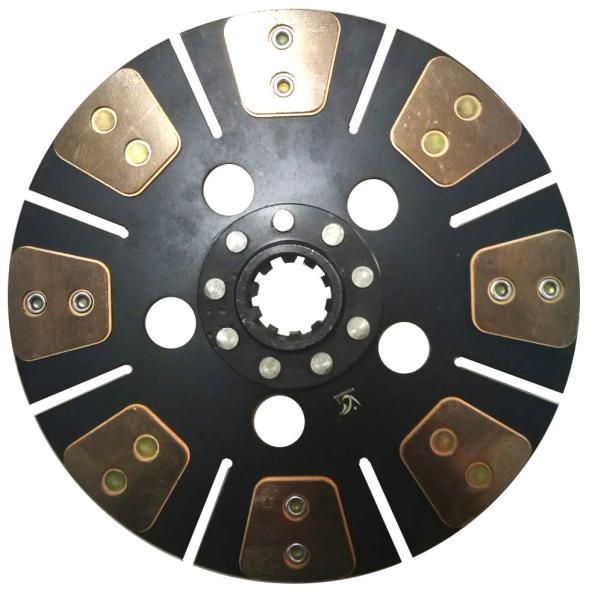

Clutch disc 12"
OEM no. TA750.211.300T
O.D 310mm
Weight 1.7Kg
Hub Ф40*45
Spline 16
Friction material Cerametallic
No. of Pad 8
Thickness 9.5
Clutch disc PTO 12"
OEM no. TA750.211A.200
O.D 310mm
Weight 1.7Kg
Hub Ф40*45
Spline 16
Friction material Cerametallic
No. of Pad 8
Thickness 9.5

The diaphragm

10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
​6: Housing 7: Clutch disc 8: plate 12 : Belleville washer 14: Plate 15: Disc PTO

Other choice for clutch disc PTO :

10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754
Clutch disc 12"
OEM no.
O.D 310mm
Weight 1.2Kg
Hub Ф24*28
Spline 10
Friction material Organic/Cerametallic
No. of Pad
Thickness 9

Related part
10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754 10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754 10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

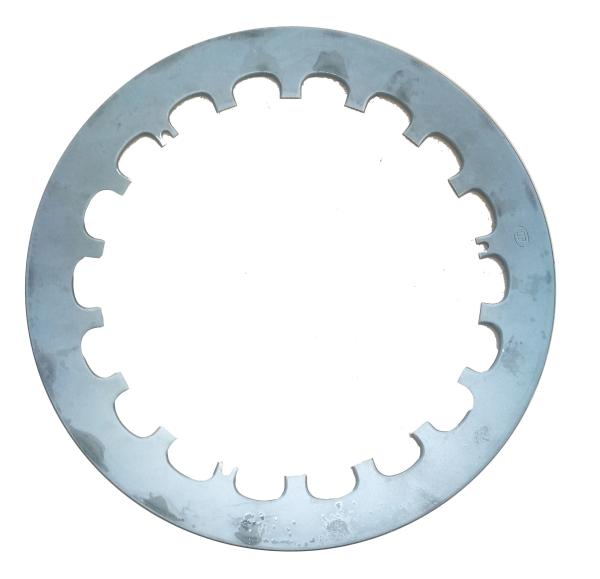

Plate

OEM : HH100-103

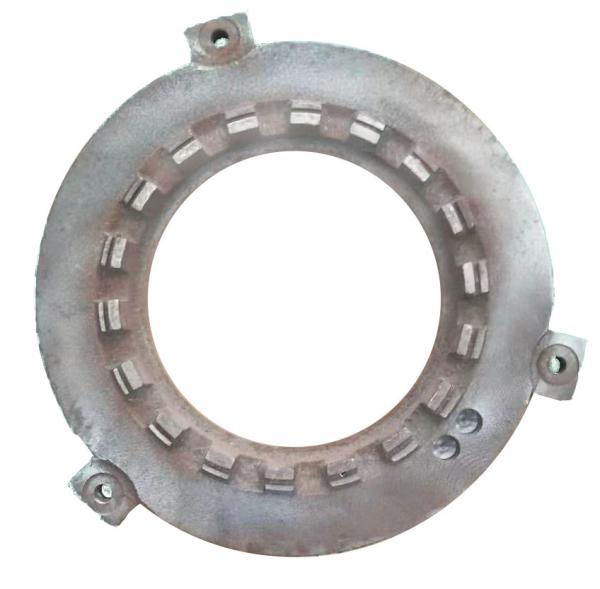

Plate

OEM: TA750.102

Belleville washer

OEM: TA750.104

Where is this product popular?

In South-east Asia,Africa and some parts of Europe,you can find this
Are there any others product also popular?

Some others product for Foton 504

10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

Clutch 10"
OEM no TB550.211A
Size 28*28*11
Weight 23Kg
Level 6
Spline 18
