Level 1

OEM: FT400.211.107

Level 2

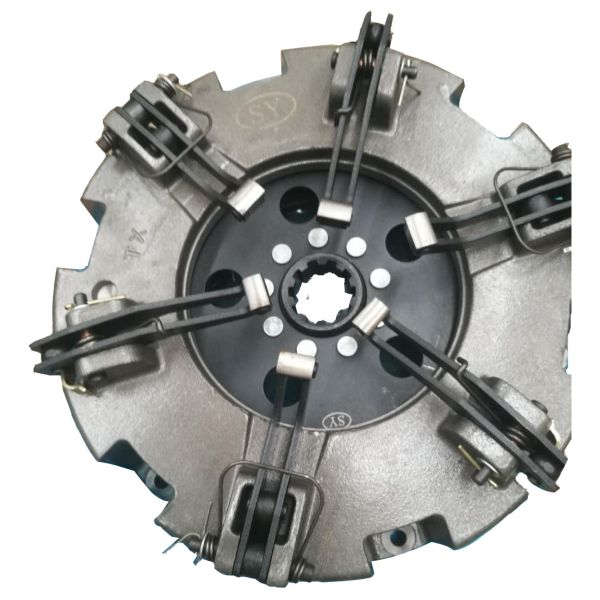

OEM: FT400.211.106

A tractor which you want to walk through smoothly, so you need an excellent and stable transmission system inclucde the clutch,bearing and shaft,that is also what we work hard to deliver,a reliable matchful clutch can enchance the power of the work and make it easier and comfortable

704,754,804,854

Well matching the transimssion system of Foton lovol
Cerametallic pad has better resistence character
Damping spring to reduce the impact of engaging
Reliable and long cooperation supplier ensure the final assembly and nice price

Choose a wonderful one for your vehicle

The clutch transfer the power coming from the engine to the transmission system thus to drive the move of the vehicle and do the work through PTO,it was installed on the clutch housing borddered with the flywheel,as one of the key part of the tractor,it play an importation role in the work and walk of the tractor,by the levels of the clutch,the control pedal can engage and disengage the pressure plate of the assembly,when the pedal on,it will cut off the transmission,contrast on,it will get the power,some elements can influence the show of it

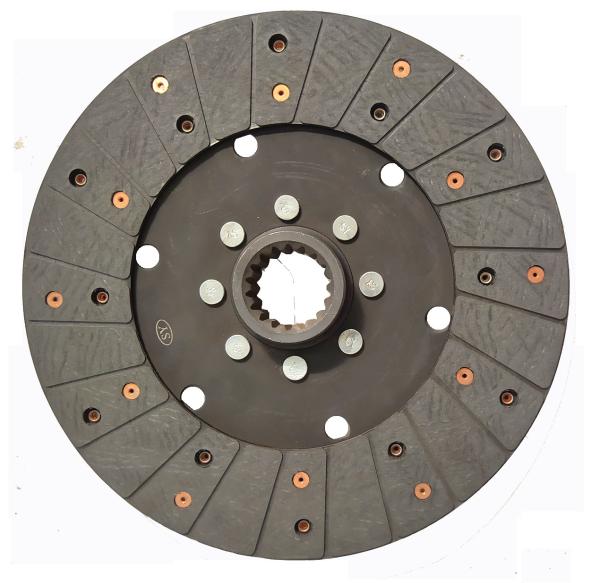

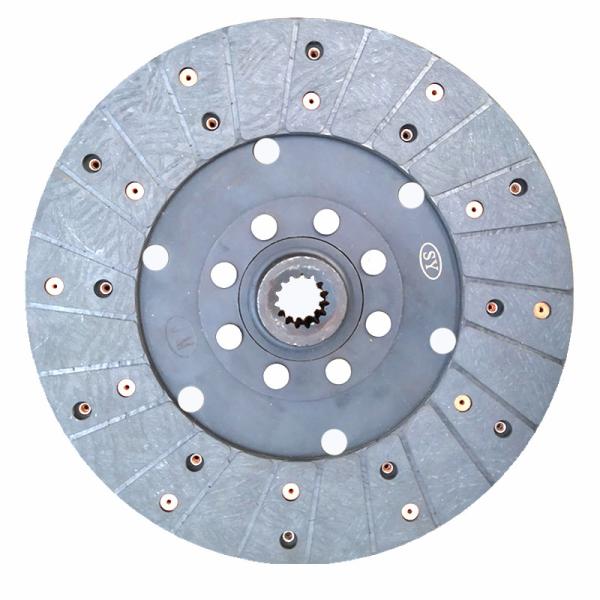

1: The clutch disc

2: The pressure plate

3: The belleville washer

4: The torgue spring

5: The housing

The clutch disc need this feature for being the qualitied product

1: Without juddering and violent shake when starting or stopping

2: Have long work life

3:Smoothy engage and disengage

4: Without rattling noise

5:Clear the vibration when power was transferred to the transmission system

The damping spring can reduce the impact when engaging or disengaging,then clear the vibration to make the power transfer smoothier

The cushion of the clutch base disc can assist the reduce of the vibration of the engine

The lining has better resistence character

The hardened spline make it not easy to be twisted so as to have long work life

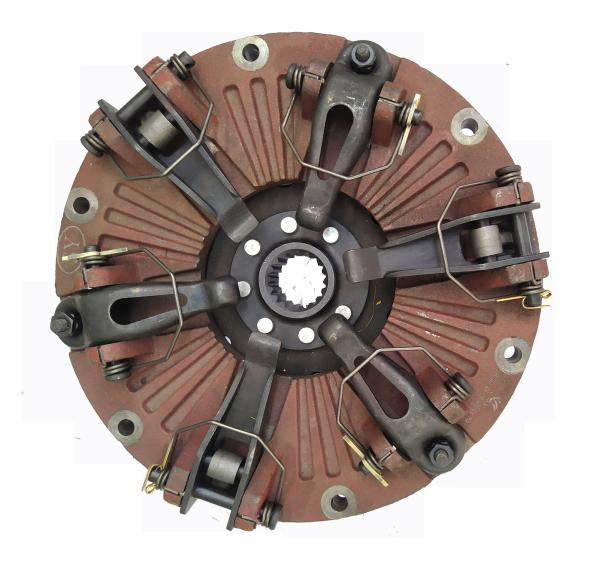

The pressure plate

Usually,the clutch assembly will have two pressure plate,one for the main disc,one for the pto or assistance disc,the first one transfer the power to the walking system,the later one to the working system,when it press the disc tightly,it will force the disc rotate synchronizeing with the flywheel so as to transfer the power to the gearshaft,so it will also bear the abrasion force,for this it should also have the better resistence character and smoothy surface also,The belleville washer was set between these two discs for the media of the force when the pedal push or pull the level,it needs the high resistence and relastic feature

The torque spring of the level take the role of resetting the level to the rest position

The housing is the place for contain the parts,it is the cast iron

It should be designed accordance to the engine and especially to the transmission system like the thrust bearing,gear shaft and the sleeve whereas make it can be well matchful

Reason for us

The abilities of one of the top 5 manufacturer in China
Skillful worker and long experience in this field for presenting the cost-effecient and qualitified product

In North and Middle America,South-east Asia,We have set the footprint

Excellent facilities of tractor industry and transportation position

The diaphragm

Plate

OEM :

Belleville washer

OEM:

Plate

OEM:

Where is this product popular?

In South east Asia some parts of Europe,Africa,you can find this

Some others product for Foton 504,554
