BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
BX62R Manual Garden 6 Inch Wood Chipper Shredder Forest Mulcher Machine
Specifications
Brand Name :
Fred
Model Number :
BX62R
Certification :
CE ; ISO
Place of Origin :
Weifang, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000 Pieces Per Year
Delivery Time :
30 Days After Payment
Packaging Details :
Iron Steel Crate
Catagory :
Forestry Machines
Rotary discharge chute :
360 Degrees
Chipper housing Opening :
6-1/2"x12"
Use :
Cutting Wood Into Pieces
No of knives :
4
Packing Size(LxWxH) :
1230x930x1950mm
Description

6'' Chipping Capacity Wood Cgipper Manual Garden Shredder Forest Mulcher Machine

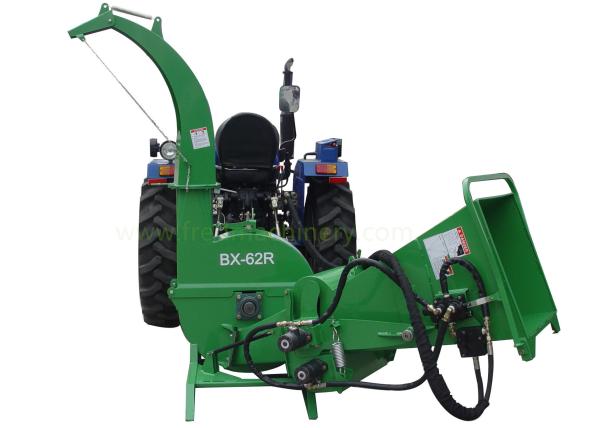

BX62-R wood chipper for PTO drive

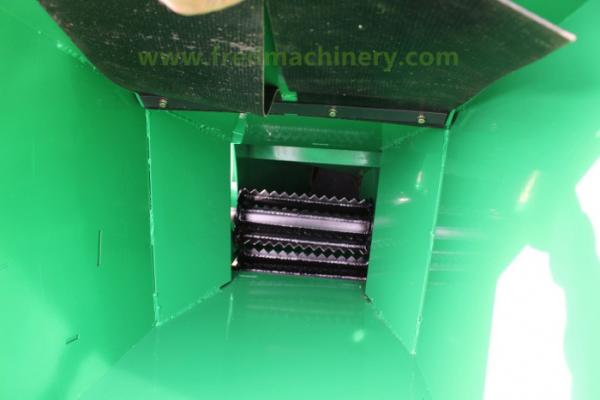

The wood chipper BX-62R is driven by PTO, and with the help of the tractor hydraulics, the wood is fed into the shredder, with the two counter-rotating spiked rollers, the wood is fed into the hacker hopper.


The feeder speed can be adjusted continuously.


The direction of the feeder can be controlled with the safety bar

The 90 kg rotor is equipped with four 59 cm long knives made of hardened tool steel.


Pieces of wood up to 15 cm in diameter are chopped into pieces of 30-70 mm.


The discharge funnel can be rotated 360 degrees and has a discharge up to 2-4 meters.


The capacity per hour, depending on the type of wood, is approx. 9 m3 / h. depending on the type of wood.


To transport the hopper can be folded upwards, and is raised by means of two auxiliary shock absorbers with.


With only one safety screw you get to the rotor and the knives, so that maintenance can be carried out easily.

Technical specifications:

CE mark


PTO drive 540rpm


Total weight 500kg


recommended tractor output 35-85hp


Max. Wood thickness 15cm


Wood chips 30-70 mm


8x25cm turning knife


Three-point hitch


Rotor weight 120kg


including PTO shaft

Chipper is delivered partially assembled, we still need to be assembled by you.
