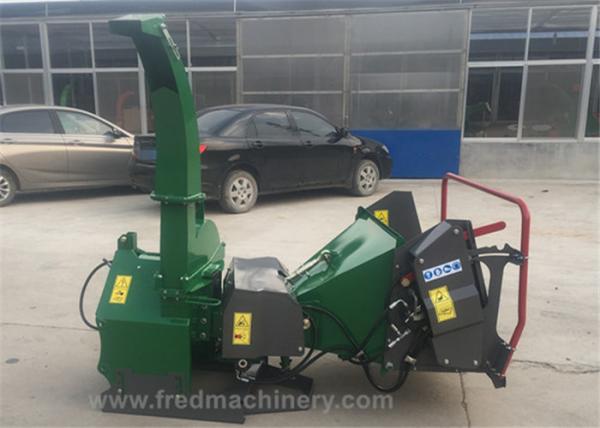

Hydraulic 5 Inch Wood Chipper 3 Point Hitch 30 - 70 HP With 4 Reverse Blades
Hydraulic 5 Inch Wood Chipper 3 Point Hitch 30 - 70 HP With 4 Reverse Blades
Hydraulic 5 Inch Wood Chipper 3 Point Hitch 30 - 70 HP With 4 Reverse Blades
Hydraulic 5 Inch Wood Chipper 3 Point Hitch 30 - 70 HP With 4 Reverse Blades
Specifications
Brand Name :
Fred
Model Number :
BX52R
Certification :
CE
Place of Origin :
Weifang , China
MOQ :
1 Unit
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
380 Pieces One Month
Delivery Time :
35 Working Days After Your Payment
Packaging Details :
Iron Steel Crate Package
Max. Diameter Of Feeding :
5 Inches (127mm)
Power Required :
30 - 70 HP
Flywheel Size :
25 Inches (630mm)
Number Of Cutting Knife :
4
Number Of Bed Knife :
1
In - Feeding System Power :
Self - Contained Hydraulic Oil Tank And Pump
Description

Hydraulic Wood Shredder With 4 Reverse Blades For 3 Point Hitch

Features:

  • Hydraulic system contains oil tank, hydraulic pump, hoses, oil control valve and control handle
  • Hydraulic transmission with double horizontal rollers
  • Matched tractors from 30 HP (22KW)
  • 4 rotor blades and 1 bed blade
  • Stop-Forward-Reverse-Stop functions
  • Roller opening: 5’’ x 8’’ (127x200mm) for BX52R
  • Upper roller height adjustable
  • Rotor lock system outside chipping house
  • Discharge outlet with 360° rotation
  • Safety handles included
  • Safety from hopper folded during transportation
  • OPTIONAL: hydraulic oil meter and support legs

Specifications:

  • The hydraulic roller power feed feature will force feed material into the cutting chamber & includes 'manual feed rate speed adjustment' on the control valve!
  • The BX52R chips 5 inches diameter wood.
  • 4 Hardened tool steel rotor knives are double sided to double the operation time between sharpenings.
  • Shear bolt protected, direct 540 or 1000RPM PTO drive provides maximum torque transfer to the rotor.
  • Discharge chute rotates 360 degrees continuously.
  • The continuously rotating discharge chute is complimented with an adjustable deflector tip.
  • Shear bolt protected, direct 540RPM PTO drive provides maximum torque transfer to the rotor.
  • Specifications are based on manufacturer provided data & subject to change w/o notice.
  • Our products are covered by one year manufacturers warranty!
