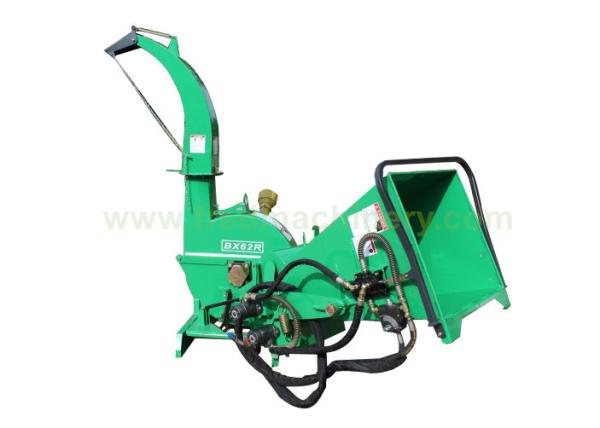

Double Rollers BX62R Tractor Wood Chipper 40 - 100HP 3 Point Hitch Mounting System
Double Rollers BX62R Tractor Wood Chipper 40 - 100HP 3 Point Hitch Mounting System
Specifications
Brand Name :
Fred
Model Number :
BX62R wood chipper
Certification :
CE ; ISO
Place of Origin :
Weifang, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000 Pieces Per Year
Delivery Time :
30 Days After Payment
Packaging Details :
Iron Steel Crate Package
Power Range :
40-100HP
Mounting System :
3 Point Hitch
Chipping Capacity :
6 "
Discharge Hood Rotation :
360 °
Warranty :
2 Years
Optional :
SKF Bearings
Description

Self - Feeding Tractor Wood Chipper Hydraulic Transmission With Double Rollers

Product Description :

​Simple, low maintenance direct drive of fly wheel and cutting blades.

Slip clutch to protect the tractor.

Hefty fly wheel to maximum momentum driving the cutting blades.

Forward, neutral and reverse control of hydraulic feed.

Ability to adjust the feed speed to suit the material being chipped.

Large twin infeed rollers with aggressive teeth to ensure branches are feed through the machine.

Rotating discharge chute allowing chips to be directed where required.

Long lasting, hardened tool steel reversible blades that can also be sharpened.

Robust, heavy gauge body construction.

Oversized greasable bearings.

Easy access to blades and anvil/ledger for maintenance

The infeed system runs off the tractors hydraulics so one pair of hydraulic remotes are required (The 4″ hydraulic feed chipper does not require hydraulic remotes on the tractor)
SPECIFICATIONS
Horsepower 40-100hp

Capacity 6 Inch

Infeed Opening 6.5″ X 12″

Rotor diameter 740mm

Qty blades 4

Hitch pins CAT 1

PTO rpm 540 – 1,000

Weight 500kg
