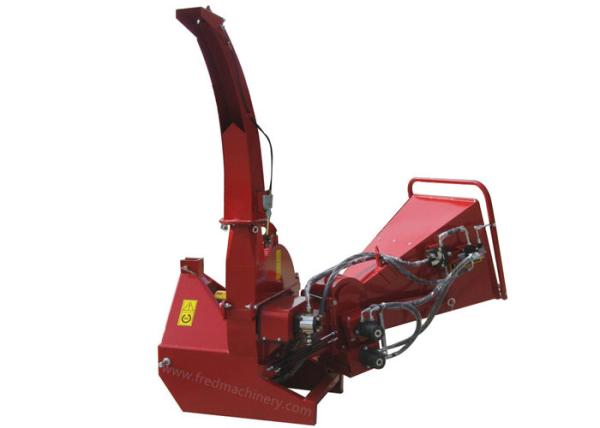

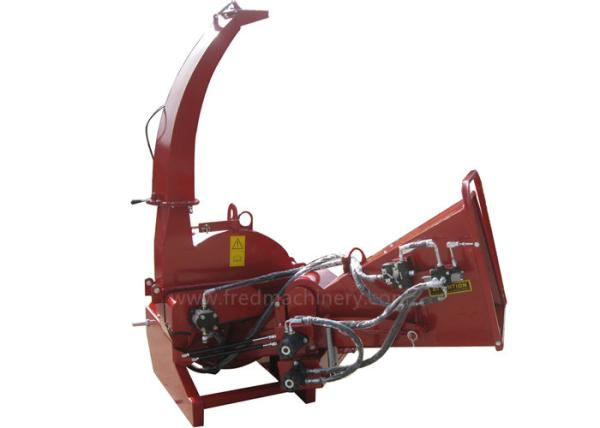

Direct Drive Pto Chipper Shredder With Hydraulic System And Oil Tank
Direct Drive Pto Chipper Shredder With Hydraulic System And Oil Tank
Direct Drive Pto Chipper Shredder With Hydraulic System And Oil Tank
Direct Drive Pto Chipper Shredder With Hydraulic System And Oil Tank
Specifications
Brand Name :
Fred
Model Number :
BX62RF
Certification :
CE
Place of Origin :
Weifang , China
MOQ :
1 Units
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
380 Units Per Month
Delivery Time :
35 Working Days After Your Payment
Packaging Details :
Iron Steel Crate Package
Power Range :
30~100HP
Chipping Capacity :
6 Inches (15cm)
Number Of Cutting Knife :
4
Hydraulic Fuel Tank Volume :
18L
Flywheel Size :
30 Inches (diameter 74cm)
Flywheel Weight :
270lbs. (121kg)
Description

CE Approved Direct Drive Shredder With Hydraulic System And Oil Tank

More details:

  • For 30-100 HP tractors
  • Disc-operated chipper, Hydraulic system contains oil tank, hydraulic pump, hoses, oil control valve and control handle
  • Hydraulic transmission with double rollers
  • Wood feeding control with forward,stop and reverse
  • Discharge hood with 360° double adjustment
  • Safety kit included
  • 4 rotor knives + 1 stationary knife
  • Hydraulic flow speed control valve
  • Material diameter from 4 Inches to 6 Inches
  • Optional:BX62RF SKF bearings

The BX62RF chipper has its own hydraulic feed system and 18L oil tank. The speed of the feed rollers can be continuously adjusted. This is important so that the feed speed can be adjusted to fit the diameter of the material to be shredded. Smaller diameters can be fed faster than larger diameters. In the event that the feeder should become blocked, the feed can be set into reverse using the large handle on the hopper. Furthermore, the feed can be switched off using this handle. The unit is powered via the tractor’s hydraulics; a pressurised supply line and an unpressurised return line are required or alternatively a double-acting control unit is required.

The BX62RF has double-sided mounting of the feed rollers . There are similar versions of this shredder, some of which offered at lower prices, which do not have this strengthening. This can lead to bending the feed rollers and bearing damage, as these are only mounted on one side; the other side of the feed rollers hangs freely. Some competitors also advertise their shredders as BX-62 although they are talking about different types. Please make sure you check competing offers carefully.
