CE Approved Hydraulic Wood Chipper With Oil Tank For 19 - 55 HP

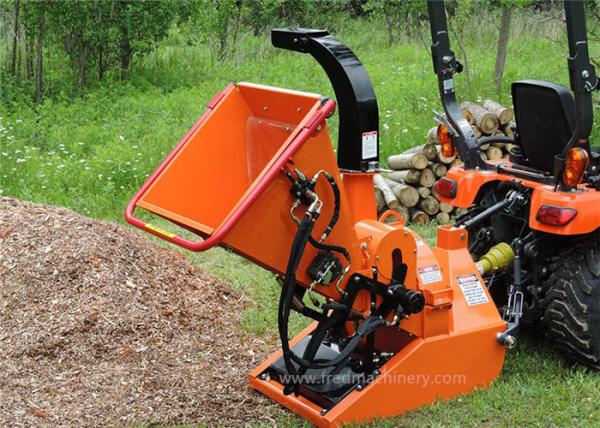

Fred Machinery is pleased to offer our newly designed and exclusive 8 Inches (200mm) PTO drive wood chipper with auto hydraulic feed. The TM-86H was designed to offer acreage owners an economical and well engineered wood chipper. This is a serious wood chipper, with a huge 8 Inches(200mm) chipping capacity. It was built to be the best valued wood chipper in its class. From the powder coated structure, to its industrial pillow block / flange mount bearings and belt drive system, this wood chipper will exceed your expectations.

Features:

• 19 hp. min. required
• 3 pt. hitch mount
• Fold up in-feed bin for storage
• 8 Inches chipping capacity
• 210lbs. 29 Inches Diameter Flywheel (dynamically balanced)
• 4-Reversible CR-12 High carbon steel fly wheel knives, 1 bed knife (anvil)
• 540 RPM Flywheel speed (direct drive)
• Hydraulic powered in-feed system
• Hydraulic system contains oil tank, hydraulic pump, hoses, oil control valve and control handle (no hydraulics required from tractor )
• Nylon protected hydraulic hose wrap
• Hardened chisel type in-feed roller
• Adjustable bed knife (to achieve proper knife gap)
• 360 Degree swivel discharge chute
• High flow chamber ventilation
• Heavy duty cast steel main shaft bearings
• Adjustable in-feed roller down pressure
• Weight 825 lbs.
• Easy fly wheel access (opens like a clam shell)
• Safety stop bar w/reverse (forward-stop-reverse)
• Baked on powder coat finish
• Clear vinyl chip baffle
• PTO shaft included (shear bolt protected)
• Color: As your request
• 1 yr. parts warranty
• Experience (thousands of Fred machines around the world)
• OEM and ODM could be offered to you.
• Minimum order quantity is only 1 unit.
