8 Inch Pto Powered Chipper , 2 Cutting Knives Pto Wood Chipper For Compact Tractor
8 Inch Pto Powered Chipper , 2 Cutting Knives Pto Wood Chipper For Compact Tractor
8 Inch Pto Powered Chipper , 2 Cutting Knives Pto Wood Chipper For Compact Tractor
8 Inch Pto Powered Chipper , 2 Cutting Knives Pto Wood Chipper For Compact Tractor
Specifications
Brand Name :
Fred
Model Number :
W - 8M
Certification :
CE , ISO
Place of Origin :
Weifang , China
MOQ :
1 Unit
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
390 Units Per Month
Delivery Time :
35 Working Days After Your Payment
Packaging Details :
Iron Steel Crate Package
Max. Diameter Of Feeding :
8 Inches
Power Required :
25 - 45 HP
Flywheel Size :
24 Inches
In - Feeding System :
In - Feeding By Worm Reduction Gear(4mm/s)
Mounting System :
3 Point Hitch
Discharge Hood Rotation :
360 Degrees
Description

Tractor Direct Drive Chipper With 2 Cutting Knives For 8 Inches Feed Opening

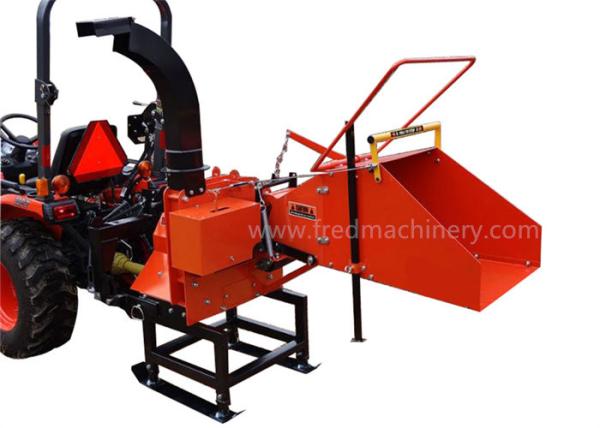

The Fred W - 8M mechanical auto-feed wood chipper is a robust self-feeding PTO driven wood chipper attachment that mounts to the 3 point hitch of your tractor. This PTO wood chipper is compact, yet built to withstand rigorous use. Dual in-feed rollers grab and pull material into the chipper head using a sturdy belt driven gear box and drive axle system. High quality chipper knives are standard equipment on W - 8H wood chippers. Check out these features. The Fred W - 8H chippers are so unique and innovate that they are now patent pending.

features:

  • 19 hp. min. required
  • 3 pt. hitch mount
  • 8” x 8” In-Feed opening
  • 200 lb. 24” Diameter Flywheel (dynamically balanced)
  • 2 Reversible blades and 1 bed knife (anvil)
  • 1120 RPM Flywheel speed
  • Mechanical gear driven in-feed system
  • Hardened chisel type in-feed roller
  • Quick hitch Compatible
  • 360 Degree swivel discharge chute
  • Adjustable base legs w/ skid shoe type base
  • High flow chamber ventilation
  • 2” diameter main shaft
  • 3-Heavy duty cast steel main shaft bearings
  • Adjustable in-feed roller down pressure
  • Weight 950 lbs. (shipping) Steel crate
  • 8mm thick steel fly wheel housing
  • Easy access fly wheel knife panel
  • Adjustable bed knife (to achieve proper knife gap)
  • 5 Heavy duty cogged drive belts
  • Safety stop bar
  • Horizontal “table height” in-feed hopper for easy loading
  • Baked on powder coat finish
  • Clear vinyl chip baffle
  • PTO shaft included (shear bolt protected) (optional USA shaft available)
  • Color: As Your Request
  • 1 yr. parts warranty
  • Experience (thousands of Fred machines around the world)
